complexType HARPriorityQueue

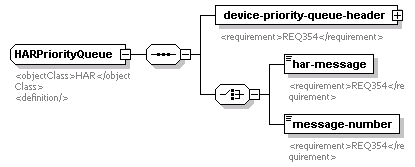

diagram
namespace http://www.ite.org/tmdd
children device-priority-queue-header har-message message-number
used by
element hARPriorityQueue
annotation
documentation
<objectClass>HAR</objectClass>
<definition/>
source <xs:complexType name="HARPriorityQueue">
  <xs:annotation>
    <xs:documentation>
      <objectClass>HAR</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-priority-queue-header" type="DevicePriorityQueueHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ354</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="har-message" type="Har-message">
        <xs:annotation>
          <xs:documentation>
            <requirement>REQ354</requirement>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="message-number" type="ntcip:DmsMessageNumber">
        <xs:annotation>
          <xs:documentation>
            <requirement>REQ354</requirement>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
</xs:complexType>

element HARPriorityQueue/device-priority-queue-header

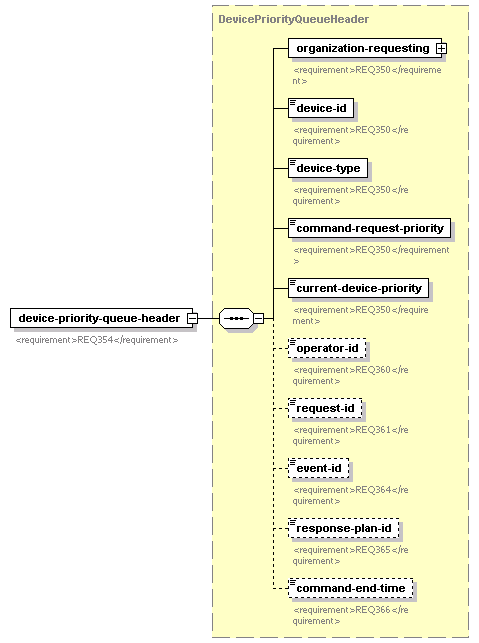

diagram
type DevicePriorityQueueHeader
properties
isRef 0
content complex
children organization-requesting device-id device-type command-request-priority current-device-priority operator-id request-id event-id response-plan-id command-end-time
annotation
documentation
<requirement>REQ354</requirement>
source <xs:element name="device-priority-queue-header" type="DevicePriorityQueueHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ354</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARPriorityQueue/har-message
diagram
type Har-message
properties
isRef 0
content simple
facets
minLength 1
maxLength 1024
annotation
documentation
<requirement>REQ354</requirement>
source <xs:element name="har-message" type="Har-message">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ354</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARPriorityQueue/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ354</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ354</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
