complexType IntersectionSignalPriorityQueue

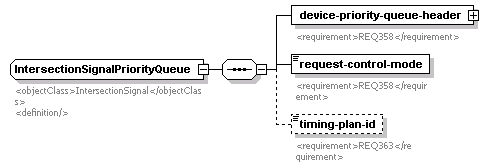

diagram
namespace http://www.ite.org/tmdd
children device-priority-queue-header request-control-mode timing-plan-id
used by
element intersectionSignalPriorityQueue
annotation
documentation
<objectClass>IntersectionSignal</objectClass>
<definition/>
source <xs:complexType name="IntersectionSignalPriorityQueue">
  <xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-priority-queue-header" type="DevicePriorityQueueHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ358</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-control-mode" type="Intersection-signal-control-mode">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ358</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ363</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element IntersectionSignalPriorityQueue/device-priority-queue-header
diagram
type DevicePriorityQueueHeader
properties
isRef 0
content complex
children organization-requesting device-id device-type command-request-priority current-device-priority operator-id request-id event-id response-plan-id command-end-time
annotation
documentation
<requirement>REQ358</requirement>
source <xs:element name="device-priority-queue-header" type="DevicePriorityQueueHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ358</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalPriorityQueue/request-control-mode
diagram
type Intersection-signal-control-mode
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ358</requirement>
source <xs:element name="request-control-mode" type="Intersection-signal-control-mode">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ358</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalPriorityQueue/timing-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ363</requirement>
source <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ363</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
