complexType atis:ComplexTime

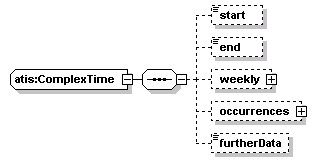

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	start end weekly occurrences furtherData
used by	elements  atis:AirlineTravelInformation/coverageTime atis:EventInformation/coverageTime atis:IncidentInformation/coverageTime atis:LinkTrafficInformation/coverageTime atis:ParkingLotInformation/coverageTime atis:TransitInformation/coverageTime atis:WeatherInformation/coverageTime atis:EventInformation/repeatTimes
source	<xs:complexType name="ComplexTime">   <xs:sequence>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <!-- the time when the entire item begins -->     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <!-- the time when the entire item is over -->     <xs:element name="weekly" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="8">           <xs:element name="weekly-item">             <xs:complexType>               <xs:sequence>                 <xs:element name="day" type="Day-of-week"/>                 <xs:element name="times" type="TimePair"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="occurrences" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="32">           <xs:element name="occurrence">             <xs:complexType>               <xs:sequence>                 <xs:element name="date" type="Date"/>                 <xs:element name="times" type="TimePair" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <!-- used to convey any schedule graphics -->   </xs:sequence> </xs:complexType>

element atis:ComplexTime/start

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element atis:ComplexTime/end

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

element atis:ComplexTime/weekly

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	weekly-item
source	<xs:element name="weekly" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="8">       <xs:element name="weekly-item">         <xs:complexType>           <xs:sequence>             <xs:element name="day" type="Day-of-week"/>             <xs:element name="times" type="TimePair"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:ComplexTime/weekly/weekly-item

diagram
properties	isRef  0 content  complex
children	day times
source	<xs:element name="weekly-item">   <xs:complexType>     <xs:sequence>       <xs:element name="day" type="Day-of-week"/>       <xs:element name="times" type="TimePair"/>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:ComplexTime/weekly/weekly-item/day

diagram
type	atis:Day-of-week
properties	isRef  0 content  simple
source	<xs:element name="day" type="Day-of-week"/>

element atis:ComplexTime/weekly/weekly-item/times

diagram
type	atis:TimePair
properties	isRef  0 content  complex
children	start end
source	<xs:element name="times" type="TimePair"/>

element atis:ComplexTime/occurrences

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	occurrence
source	<xs:element name="occurrences" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="32">       <xs:element name="occurrence">         <xs:complexType>           <xs:sequence>             <xs:element name="date" type="Date"/>             <xs:element name="times" type="TimePair" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:ComplexTime/occurrences/occurrence

diagram
properties	isRef  0 content  complex
children	date times
source	<xs:element name="occurrence">   <xs:complexType>     <xs:sequence>       <xs:element name="date" type="Date"/>       <xs:element name="times" type="TimePair" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:ComplexTime/occurrences/occurrence/date

diagram
type	atis:Date
properties	isRef  0 content  simple
facets	length  8
source	<xs:element name="date" type="Date"/>

element atis:ComplexTime/occurrences/occurrence/times

diagram
type	atis:TimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end
source	<xs:element name="times" type="TimePair" minOccurs="0"/>

element atis:ComplexTime/furtherData

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
