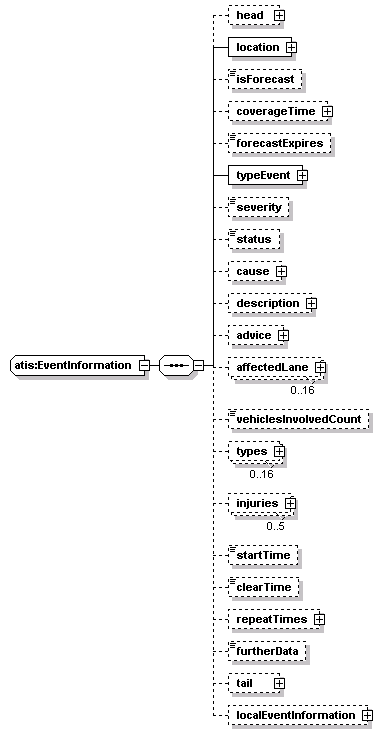

complexType atis:EventInformation

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	head location isForecast coverageTime forecastExpires typeEvent severity status cause description advice affectedLane vehiclesInvolvedCount types injuries startTime clearTime repeatTimes furtherData tail localEventInformation
used by	elements  Impact/atisReport WorkZoneData/description NetworkConditions/bundledATIS/events/event atis:ResponseGroup/event
source	<xs:complexType name="EventInformation">   <xs:sequence>     <xs:element name="head" type="Head" minOccurs="0"/>     <xs:element name="location" type="lrms:LocationReference"/>     <!-- location for which this applies -->     <xs:element name="isForecast" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- forecast or predicted period -->     <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>     <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>     <xs:element name="typeEvent" type="itis:ITISEventType"/>     <!-- a catagory and an item from that catagory          all ITS stds use the same types here -->     <xs:element name="severity" type="tmdd:Event-incident-severity" minOccurs="0"/>     <xs:element name="status" type="itis:IncidentResponseStatus" minOccurs="0"/>     <!-- status of the event (from ITIS) -->     <xs:element name="cause" type="itis:ITIScodesAndText" minOccurs="0"/>     <xs:element name="description" type="itis:ITIScodesAndText" minOccurs="0"/>     <xs:element name="advice" type="itis:ITIScodesAndText" minOccurs="0"/>     <!-- current relevent information in text and codes -->     <xs:element name="affectedLane" type="im:LaneDescription" minOccurs="0" maxOccurs="16"/>     <xs:element name="vehiclesInvolvedCount" type="tmdd:Event-incident-vehicles-involved-count" minOccurs="0"/>     <!-- the number of vehicles -->     <xs:element name="types" type="VehiclesInvolved" minOccurs="0" maxOccurs="16"/>     <!-- the types of vehicles and a count of each -->     <xs:element name="injuries" type="im:InjuryCounts" minOccurs="0" maxOccurs="5"/>     <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>     <!-- point in time this event started -->     <xs:element name="clearTime" type="DateTimePair" minOccurs="0"/>     <!-- an estimated clear time -->     <xs:element name="repeatTimes" type="ComplexTime" minOccurs="0"/>     <!-- a set of repeating times for events          which re-occur over a periods of days -->     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localEventInformation" type="local:EventInformation" minOccurs="0"/>   </xs:sequence> </xs:complexType>

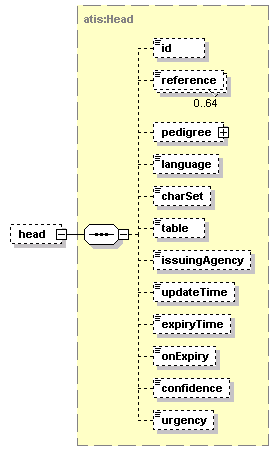

element atis:EventInformation/head

diagram
type	atis:Head
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source	<xs:element name="head" type="Head" minOccurs="0"/>

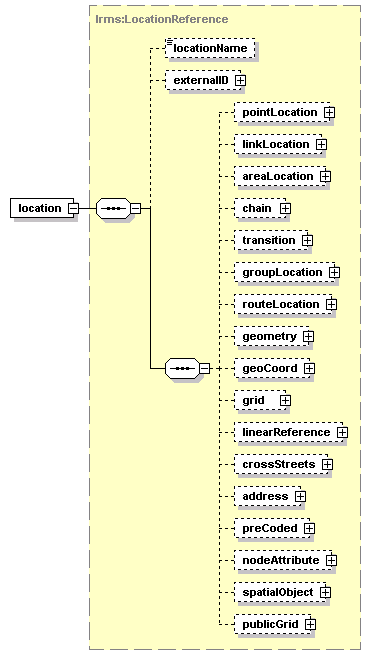

element atis:EventInformation/location

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference"/>

element atis:EventInformation/isForecast

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="isForecast" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

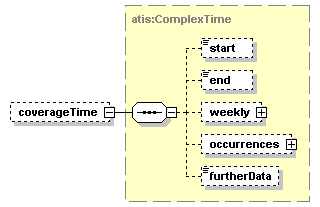

element atis:EventInformation/coverageTime

diagram
type	atis:ComplexTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end weekly occurrences furtherData
source	<xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element atis:EventInformation/forecastExpires

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

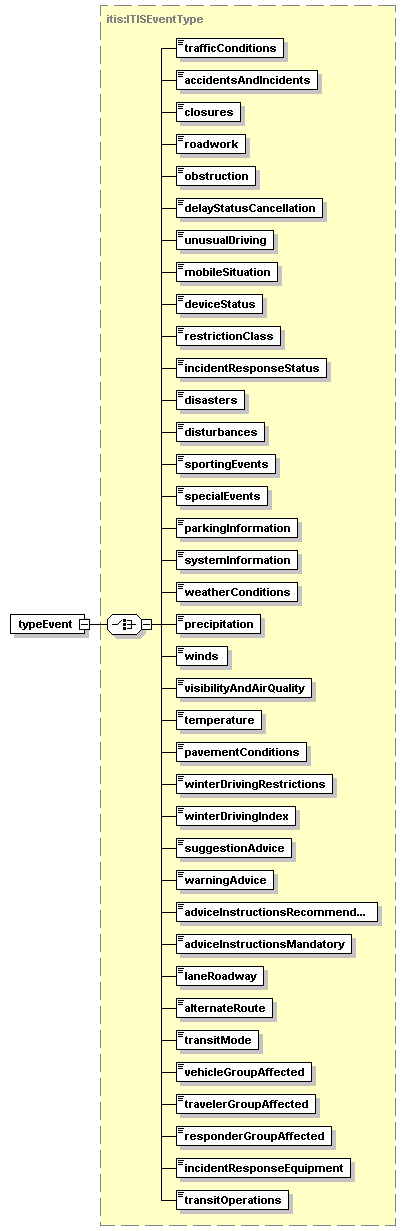

element atis:EventInformation/typeEvent

diagram
type	itis:ITISEventType
properties	isRef  0 content  complex
children	trafficConditions accidentsAndIncidents closures roadwork obstruction delayStatusCancellation unusualDriving mobileSituation deviceStatus restrictionClass incidentResponseStatus disasters disturbances sportingEvents specialEvents parkingInformation systemInformation weatherConditions precipitation winds visibilityAndAirQuality temperature pavementConditions winterDrivingRestrictions winterDrivingIndex suggestionAdvice warningAdvice adviceInstructionsRecommendations adviceInstructionsMandatory laneRoadway alternateRoute transitMode vehicleGroupAffected travelerGroupAffected responderGroupAffected incidentResponseEquipment transitOperations
source	<xs:element name="typeEvent" type="itis:ITISEventType"/>

element atis:EventInformation/severity

diagram
type	tmdd:Event-incident-severity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="severity" type="tmdd:Event-incident-severity" minOccurs="0"/>

element atis:EventInformation/status

diagram
type	itis:IncidentResponseStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="status" type="itis:IncidentResponseStatus" minOccurs="0"/>

element atis:EventInformation/cause

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="cause" type="itis:ITIScodesAndText" minOccurs="0"/>

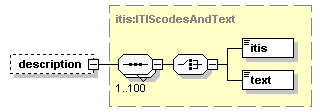

element atis:EventInformation/description

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="description" type="itis:ITIScodesAndText" minOccurs="0"/>

element atis:EventInformation/advice

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="advice" type="itis:ITIScodesAndText" minOccurs="0"/>

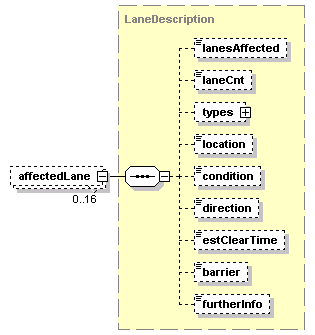

element atis:EventInformation/affectedLane

diagram
type	LaneDescription
properties	isRef  0 minOcc  0 maxOcc  16 content  complex
children	lanesAffected laneCnt types location condition direction estClearTime barrier furtherInfo
source	<xs:element name="affectedLane" type="im:LaneDescription" minOccurs="0" maxOccurs="16"/>

element atis:EventInformation/vehiclesInvolvedCount

diagram
type	tmdd:Event-incident-vehicles-involved-count
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="vehiclesInvolvedCount" type="tmdd:Event-incident-vehicles-involved-count" minOccurs="0"/>

element atis:EventInformation/types

diagram
type	atis:VehiclesInvolved
properties	isRef  0 minOcc  0 maxOcc  16 content  complex
children	kind count
source	<xs:element name="types" type="VehiclesInvolved" minOccurs="0" maxOccurs="16"/>

element atis:EventInformation/injuries

diagram
type	InjuryCounts
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
children	injuryLevel count
source	<xs:element name="injuries" type="im:InjuryCounts" minOccurs="0" maxOccurs="5"/>

element atis:EventInformation/startTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="startTime" type="DateTimePair" minOccurs="0"/>

element atis:EventInformation/clearTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="clearTime" type="DateTimePair" minOccurs="0"/>

element atis:EventInformation/repeatTimes

diagram
type	atis:ComplexTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end weekly occurrences furtherData
source	<xs:element name="repeatTimes" type="ComplexTime" minOccurs="0"/>

element atis:EventInformation/furtherData

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element atis:EventInformation/tail

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element atis:EventInformation/localEventInformation

diagram
type	EventInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localEventInformation" type="local:EventInformation" minOccurs="0"/>
