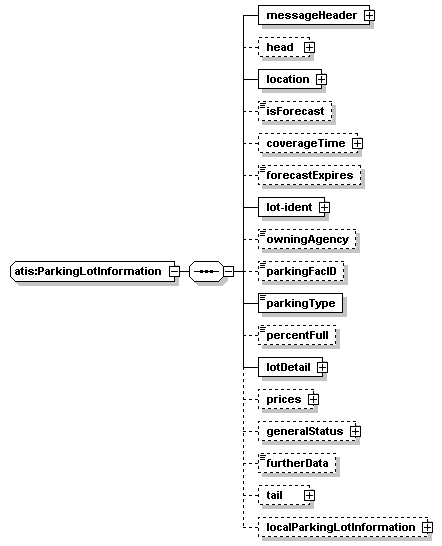

complexType atis:ParkingLotInformation

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader head location isForecast coverageTime forecastExpires lot-ident owningAgency parkingFacID parkingType percentFull lotDetail prices generalStatus furtherData tail localParkingLotInformation
used by	elements  tcip:PIParkingFacility/facilityInfo NetworkConditions/bundledATIS/parkingLots/parkingLot PhysicalAssetStatus/assetChoices/parkingLot atis:ResponseGroup/parkingLot
source	<xs:complexType name="ParkingLotInformation">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="head" type="Head" minOccurs="0"/>     <xs:element name="location" type="lrms:LocationReference"/>     <!-- location for which this applies -->     <xs:element name="isForecast" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- forecast or predicted period -->     <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>     <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>     <xs:element name="lot-ident" type="IdentityOrLocation"/>     <xs:element name="owningAgency" type="tmdd:Organization-resource-identifier" minOccurs="0"/>     <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID" minOccurs="0"/>     <xs:element name="parkingType" type="tcip:PI-ParkingType"/>     <xs:element name="percentFull" type="Percent" minOccurs="0"/>     <xs:element name="lotDetail" type="LotInformation"/>     <xs:element name="prices" type="PriceSchedule" minOccurs="0"/>     <xs:element name="generalStatus" type="itis:ITIScodesAndText" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localParkingLotInformation" type="local:ParkingLotInformation" minOccurs="0"/>   </xs:sequence> </xs:complexType>

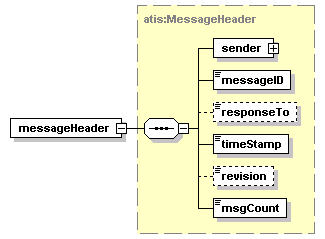

element atis:ParkingLotInformation/messageHeader

diagram
type	atis:MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

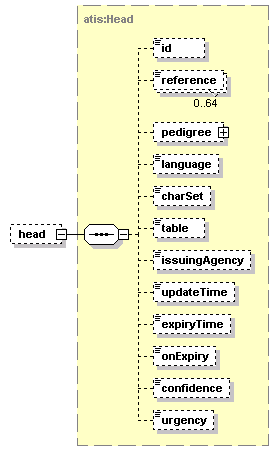

element atis:ParkingLotInformation/head

diagram
type	atis:Head
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source	<xs:element name="head" type="Head" minOccurs="0"/>

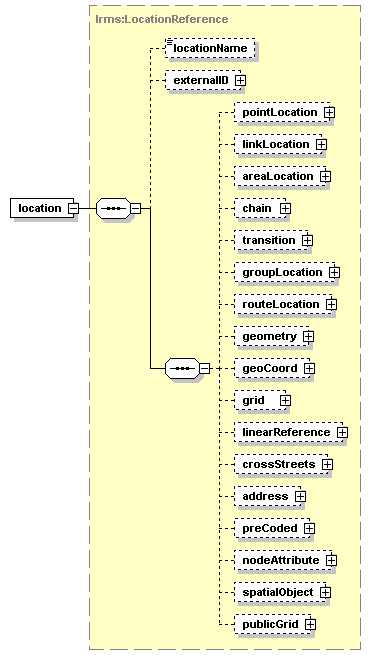

element atis:ParkingLotInformation/location

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference"/>

element atis:ParkingLotInformation/isForecast

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="isForecast" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

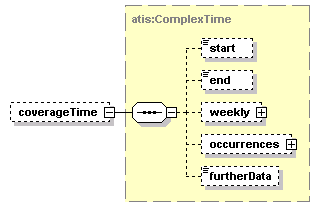

element atis:ParkingLotInformation/coverageTime

diagram
type	atis:ComplexTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end weekly occurrences furtherData
source	<xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element atis:ParkingLotInformation/forecastExpires

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

element atis:ParkingLotInformation/lot-ident

diagram
type	atis:IdentityOrLocation
properties	isRef  0 content  complex
children	location dbIdentity
source	<xs:element name="lot-ident" type="IdentityOrLocation"/>

element atis:ParkingLotInformation/owningAgency

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="owningAgency" type="tmdd:Organization-resource-identifier" minOccurs="0"/>

element atis:ParkingLotInformation/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="parkingFacID" type="tcip:PI-ParkingFacID" minOccurs="0"/>

element atis:ParkingLotInformation/parkingType

diagram
type	tcip:PI-ParkingType
properties	isRef  0 content  simple
source	<xs:element name="parkingType" type="tcip:PI-ParkingType"/>

element atis:ParkingLotInformation/percentFull

diagram
type	atis:Percent
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  100
source	<xs:element name="percentFull" type="Percent" minOccurs="0"/>

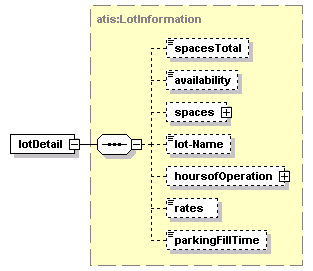

element atis:ParkingLotInformation/lotDetail

diagram
type	atis:LotInformation
properties	isRef  0 content  complex
children	spacesTotal availability spaces lot-Name hoursofOperation rates parkingFillTime
source	<xs:element name="lotDetail" type="LotInformation"/>

element atis:ParkingLotInformation/prices

diagram
type	atis:PriceSchedule
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end entry
source	<xs:element name="prices" type="PriceSchedule" minOccurs="0"/>

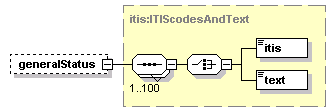

element atis:ParkingLotInformation/generalStatus

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="generalStatus" type="itis:ITIScodesAndText" minOccurs="0"/>

element atis:ParkingLotInformation/furtherData

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element atis:ParkingLotInformation/tail

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element atis:ParkingLotInformation/localParkingLotInformation

diagram
type	ParkingLotInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localParkingLotInformation" type="local:ParkingLotInformation" minOccurs="0"/>
