complexType lrms:CrossStreets

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName crossStreetsPoint crossStreetsLink
used by	element  lrms:LocationReference/crossStreets
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="CrossStreets">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:choice>       <xs:element name="crossStreetsPoint" type="CrossStreetsPoint"/>       <xs:element name="crossStreetsLink" type="CrossStreetsLink"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:CrossStreets/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

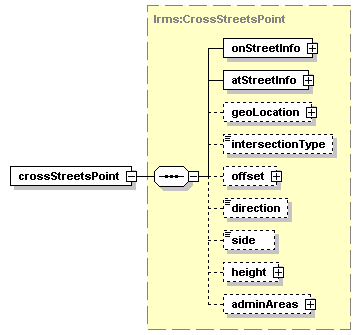

element lrms:CrossStreets/crossStreetsPoint

diagram
type	lrms:CrossStreetsPoint
properties	isRef  0 content  complex
children	onStreetInfo atStreetInfo geoLocation intersectionType offset direction side height adminAreas
source	<xs:element name="crossStreetsPoint" type="CrossStreetsPoint"/>

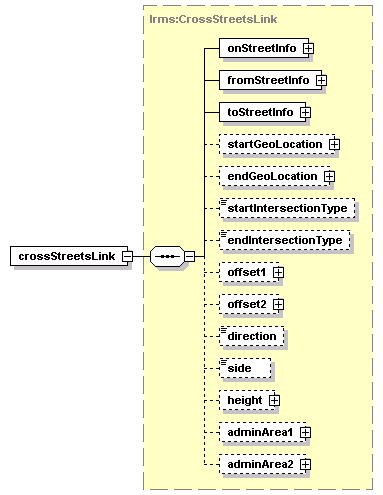

element lrms:CrossStreets/crossStreetsLink

diagram
type	lrms:CrossStreetsLink
properties	isRef  0 content  complex
children	onStreetInfo fromStreetInfo toStreetInfo startGeoLocation endGeoLocation startIntersectionType endIntersectionType offset1 offset2 direction side height adminArea1 adminArea2
source	<xs:element name="crossStreetsLink" type="CrossStreetsLink"/>
