complexType tcip:SPFeatureGeometry

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	geometry fill thickness
used by	element  tcip:SPFeature/geometry
source	<xs:complexType name="SPFeatureGeometry">   <xs:sequence>     <xs:element name="geometry">       <xs:complexType>         <xs:choice>           <xs:element name="point" type="SPPoint"/>           <xs:element name="line">             <xs:complexType>               <xs:sequence maxOccurs="10000">                 <xs:element name="line-item" type="SPPoint"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="polygon" type="SPPolygon"/>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="fill" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="thickness" type="CPT-GenericCounter" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPFeatureGeometry/geometry

diagram
properties	isRef  0 content  complex
children	point line polygon
source	<xs:element name="geometry">   <xs:complexType>     <xs:choice>       <xs:element name="point" type="SPPoint"/>       <xs:element name="line">         <xs:complexType>           <xs:sequence maxOccurs="10000">             <xs:element name="line-item" type="SPPoint"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="polygon" type="SPPolygon"/>     </xs:choice>   </xs:complexType> </xs:element>

element tcip:SPFeatureGeometry/geometry/point

diagram
type	tcip:SPPoint
properties	isRef  0 content  complex
children	pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source	<xs:element name="point" type="SPPoint"/>

element tcip:SPFeatureGeometry/geometry/line

diagram
properties	isRef  0 content  complex
children	line-item
source	<xs:element name="line">   <xs:complexType>     <xs:sequence maxOccurs="10000">       <xs:element name="line-item" type="SPPoint"/>     </xs:sequence>   </xs:complexType> </xs:element>

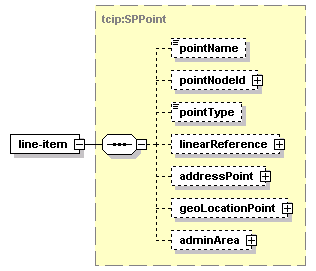

element tcip:SPFeatureGeometry/geometry/line/line-item

diagram
type	tcip:SPPoint
properties	isRef  0 content  complex
children	pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source	<xs:element name="line-item" type="SPPoint"/>

element tcip:SPFeatureGeometry/geometry/polygon

diagram
type	tcip:SPPolygon
properties	isRef  0 content  complex
children	polygonName vertices polygonId
source	<xs:element name="polygon" type="SPPolygon"/>

element tcip:SPFeatureGeometry/fill

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="fill" type="CPT-Boolean" minOccurs="0"/>

element tcip:SPFeatureGeometry/thickness

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="thickness" type="CPT-GenericCounter" minOccurs="0"/>
