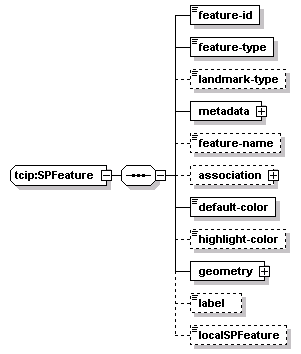

complexType tcip:SPFeature

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	feature-id feature-type landmark-type metadata feature-name association default-color highlight-color geometry label localSPFeature
used by	elements  tcip:CcGISFile/deleted-features/deleted-feature tcip:SpGIS/deleted-features/deleted-feature tcip:CcGISFile/features/feature tcip:SpGIS/features/feature tcip:SpGISPush/features/feature
source	<xs:complexType name="SPFeature">   <xs:sequence>     <xs:element name="feature-id" type="SP-FeatureID"/>     <xs:element name="feature-type" type="CPT-FeatureType"/>     <xs:element name="landmark-type" type="PI-LandmarkType" minOccurs="0"/>     <xs:element name="metadata" type="CPTRowMetaData"/>     <xs:element name="feature-name" type="SP-FeatureName" minOccurs="0"/>     <xs:element name="association" type="CPTGenericIden" minOccurs="0"/>     <xs:element name="default-color" type="CPT-Color"/>     <xs:element name="highlight-color" type="CPT-Color" minOccurs="0"/>     <xs:element name="geometry" type="SPFeatureGeometry"/>     <xs:element name="label" type="SP-FeatureLabel" minOccurs="0"/>     <xs:element name="localSPFeature" type="local:SPFeature" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPFeature/feature-id

diagram
type	tcip:SP-FeatureID
properties	isRef  0 content  simple
source	<xs:element name="feature-id" type="SP-FeatureID"/>

element tcip:SPFeature/feature-type

diagram
type	tcip:CPT-FeatureType
properties	isRef  0 content  simple
source	<xs:element name="feature-type" type="CPT-FeatureType"/>

element tcip:SPFeature/landmark-type

diagram
type	tcip:PI-LandmarkType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="landmark-type" type="PI-LandmarkType" minOccurs="0"/>

element tcip:SPFeature/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:SPFeature/feature-name

diagram
type	tcip:SP-FeatureName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="feature-name" type="SP-FeatureName" minOccurs="0"/>

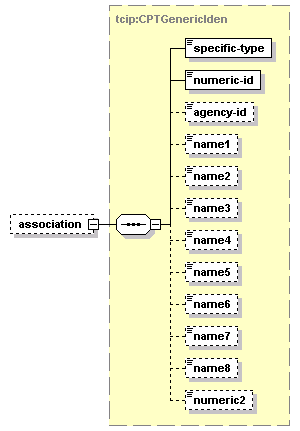

element tcip:SPFeature/association

diagram
type	tcip:CPTGenericIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	specific-type numeric-id agency-id name1 name2 name3 name4 name5 name6 name7 name8 numeric2
source	<xs:element name="association" type="CPTGenericIden" minOccurs="0"/>

element tcip:SPFeature/default-color

diagram
type	tcip:CPT-Color
properties	isRef  0 content  simple
source	<xs:element name="default-color" type="CPT-Color"/>

element tcip:SPFeature/highlight-color

diagram
type	tcip:CPT-Color
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="highlight-color" type="CPT-Color" minOccurs="0"/>

element tcip:SPFeature/geometry

diagram
type	tcip:SPFeatureGeometry
properties	isRef  0 content  complex
children	geometry fill thickness
source	<xs:element name="geometry" type="SPFeatureGeometry"/>

element tcip:SPFeature/label

diagram
type	tcip:SP-FeatureLabel
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="label" type="SP-FeatureLabel" minOccurs="0"/>

element tcip:SPFeature/localSPFeature

diagram
type	SPFeature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="localSPFeature" type="local:SPFeature" minOccurs="0"/>
