Documentation for ATIS-Draft-03-00-79

Element: schRunScheduleList

[Table of contents]

Name schRunScheduleList
Type SchRunScheduleList
Nillable no
Abstract no

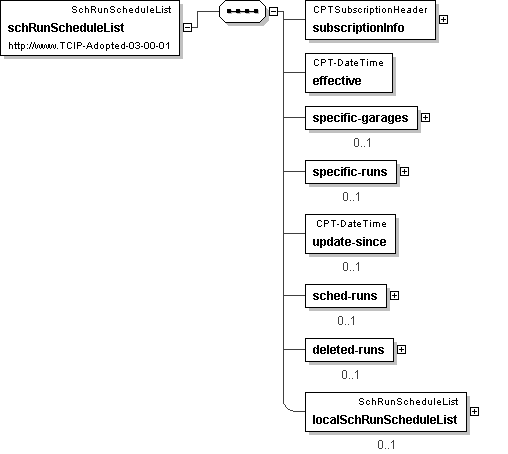

Logical Diagram
h-841091506 h622141300 h443401984 h-9178687 h1851536607 h-1752557232
XML Instance Representation
<schRunScheduleList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<effective> CPT-DateTime </effective> [1]
<specific-garages> [0..1]
Start Sequence [1..10]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<specific-runs> [0..1]
Start Sequence [1..10000]
<specific-run> SCHRunIden </specific-run> [1]
End Sequence
</specific-runs>
<update-since> CPT-DateTime </update-since> [0..1]
<sched-runs> [0..1]
Start Sequence [1..10000]
<sched-run> SCHRunScheduleEntry </sched-run> [1]
End Sequence
</sched-runs>
<deleted-runs> [0..1]
Start Sequence [1..10000]
<deleted-run> SCHRunIden </deleted-run> [1]
End Sequence
</deleted-runs>
<localSchRunScheduleList> local:SchRunScheduleList </localSchRunScheduleList> [0..1]
</schRunScheduleList>

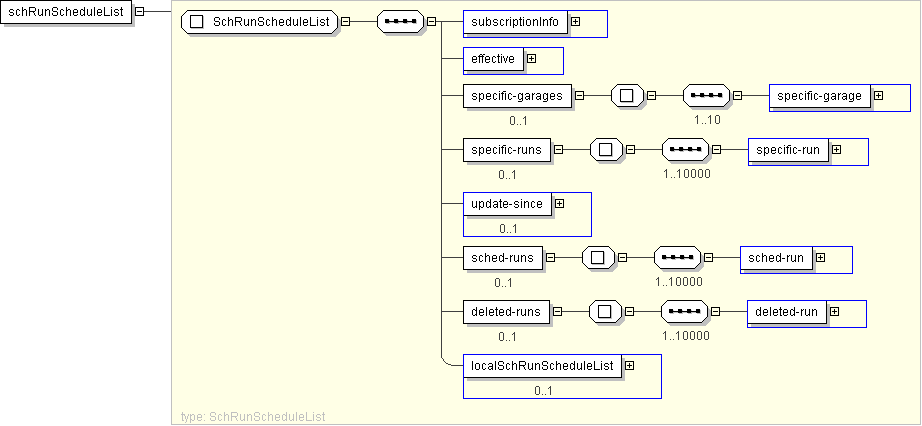

Diagram
h-527207252 h1272267302 h2133900120 h355204924 h1272267302 h-876705053 h355204924 h-907274227
Schema Component Representation
<xs:element name="schRunScheduleList" type=" SchRunScheduleList "/>
