Documentation for ATIS-Draft-03-00-79

Element: ccTravelerRequestLog

[Table of contents]

Name ccTravelerRequestLog
Type CcTravelerRequestLog
Nillable no
Abstract no

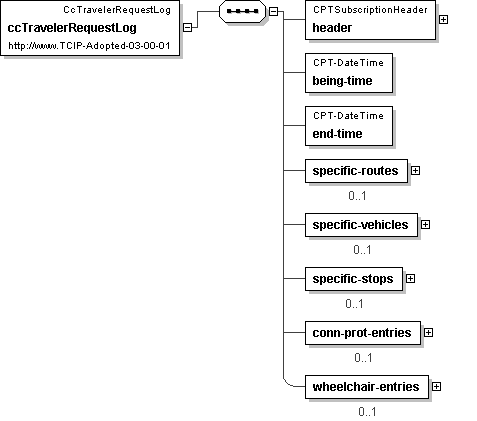

Logical Diagram
h-1421071056 h902215938 h1454893695 h861454329 h-400493912 h188016688
XML Instance Representation
<ccTravelerRequestLog>
<header> CPTSubscriptionHeader </header> [1]
<being-time> CPT-DateTime </being-time> [1]
<end-time> CPT-DateTime </end-time> [1]
<specific-routes> [0..1]
Start Sequence [1..100]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-vehicles> [0..1]
Start Sequence [1..10000]
<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]
End Sequence
</specific-vehicles>
<specific-stops> [0..1]
Start Sequence [1..10000]
<specific-stop> CPTStoppointIden </specific-stop> [1]
End Sequence
</specific-stops>
<conn-prot-entries> [0..1]
Start Sequence [1..30000]
<conn-prot-entry> CCConnProtLogEntry </conn-prot-entry> [1]
End Sequence
</conn-prot-entries>
<wheelchair-entries> [0..1]
Start Sequence [1..10000]
<wheelchair-entry> CCWheelchairLogEntry </wheelchair-entry> [1]
End Sequence
</wheelchair-entries>
</ccTravelerRequestLog>

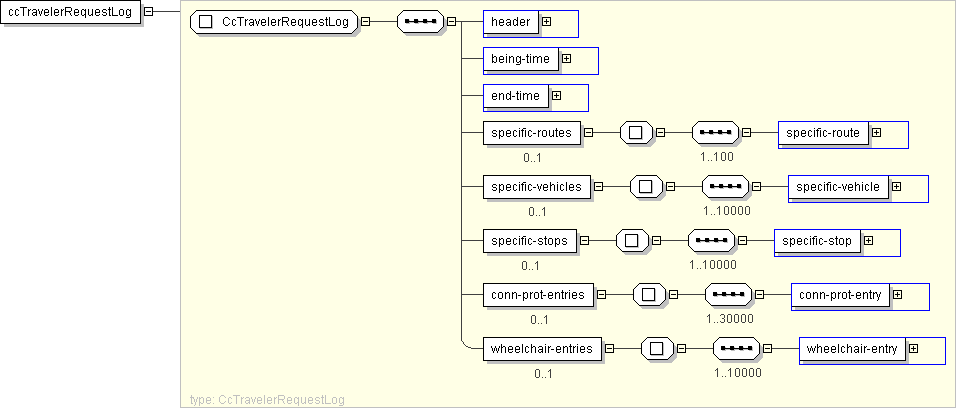

Diagram
h-527207252 h1272267302 h1272267302 h-963684166 h1471596526 h2146772752 h-840915194 h1939273309
Schema Component Representation
<xs:element name="ccTravelerRequestLog" type=" CcTravelerRequestLog "/>
