Documentation for ATIS-Draft-03-00-79

Element: ccAdherencePerformance

[Table of contents]

Name ccAdherencePerformance
Type CcAdherencePerformance
Nillable no
Abstract no

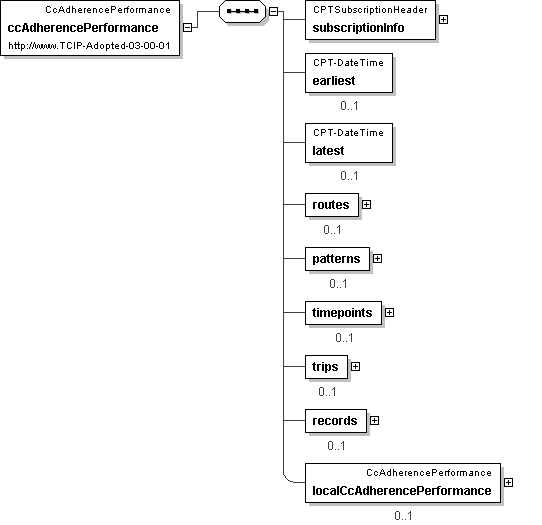

Logical Diagram
h-841091506 h-1124933139 h-1783384890 h-1932139757 h-588552725 h-816240641 h-1328143077
XML Instance Representation
<ccAdherencePerformance>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<earliest> CPT-DateTime </earliest> [0..1]
<latest> CPT-DateTime </latest> [0..1]
<routes> [0..1]
Start Sequence [1..1000]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<patterns> [0..1]
Start Sequence [1..1000]
<pattern> SCHPatternIden </pattern> [1]
End Sequence
</patterns>
<timepoints> [0..1]
Start Sequence [1..1000]
<timepoint> SCHTimepointIden </timepoint> [1]
End Sequence
</timepoints>
<trips> [0..1]
Start Sequence [1..1000]
<trip> SCHTripIden </trip> [1]
End Sequence
</trips>
<records> [0..1]
Start Sequence [1..100000]
<record> CCHistoricalAdherenceRecord </record> [1]
End Sequence
</records>
<localCcAdherencePerformance> local:CcAdherencePerformance </localCcAdherencePerformance> [0..1]
</ccAdherencePerformance>

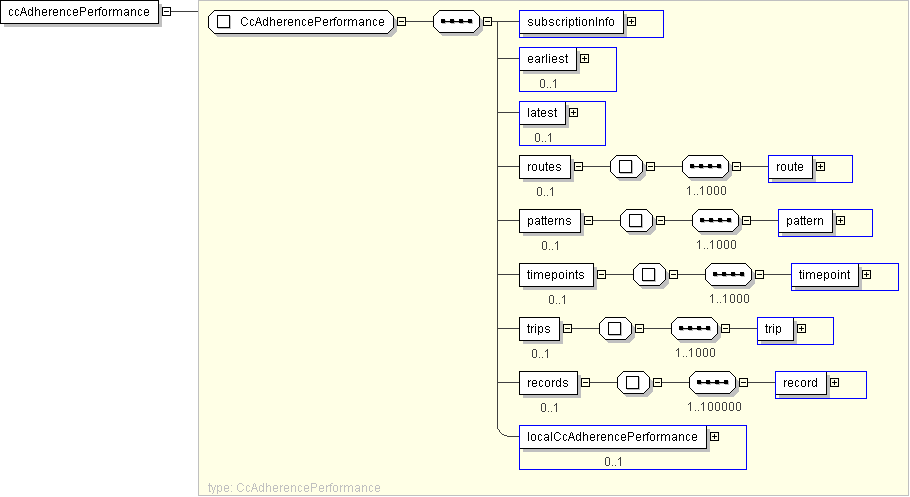

Diagram
h-527207252 h1272267302 h1272267302 h-963684166 h-1937713343 h1668863444 h-1158373540 h-1933170081 h-797934248
Schema Component Representation
<xs:element name="ccAdherencePerformance" type=" CcAdherencePerformance "/>
