Documentation for ATIS-Draft-03-00-79

Element: schRosterList

[Table of contents]

Name schRosterList
Type SchRosterList
Nillable no
Abstract no

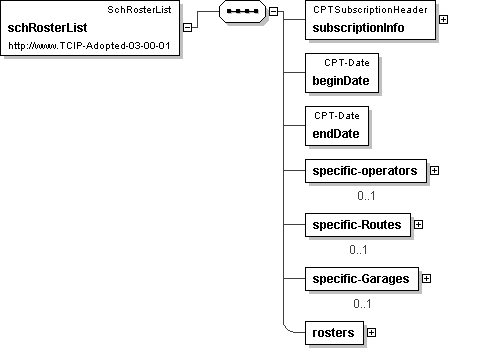

Logical Diagram
h-841091506 h1503907735 h-13916894 h-2008172716 h-515035899
XML Instance Representation
<schRosterList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<endDate> CPT-Date </endDate> [1]
<specific-operators> [0..1]
Start Sequence [1..25000]
<specific-operator> CPTOperatorIden </specific-operator> [1]
End Sequence
</specific-operators>
<specific-Routes> [0..1]
Start Sequence [1..100]
<specific-Route> SCHRouteIden </specific-Route> [1]
End Sequence
</specific-Routes>
<specific-Garages> [0..1]
Start Sequence [1..100]
<specific-Garage> CPTTransitFacilityIden </specific-Garage> [1]
End Sequence
</specific-Garages>
<rosters> [1]
Start Sequence [1..25000]
<roster> SCHRoster </roster> [1]
End Sequence
</rosters>
</schRosterList>

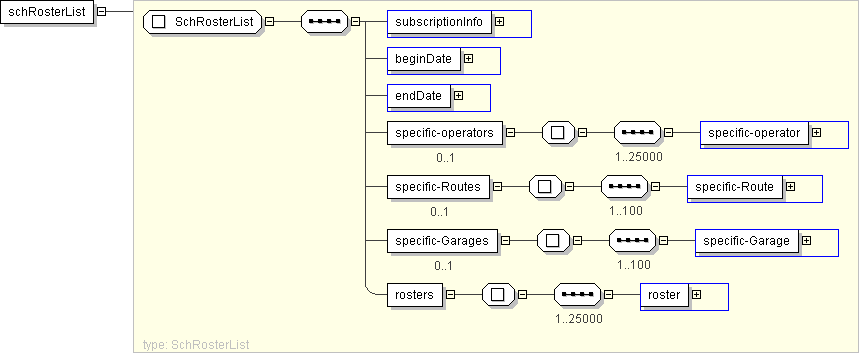

Diagram
h-527207252 h-1969881159 h-1969881159 h324755946 h-963684166 h2133900120 h-1933555234
Schema Component Representation
<xs:element name="schRosterList" type=" SchRosterList "/>
