Documentation for ATIS-Draft-03-00-79

Element: ccOnboardConfigurationData

[Table of contents]

Name ccOnboardConfigurationData
Type CcOnboardConfigurationData
Nillable no
Abstract no

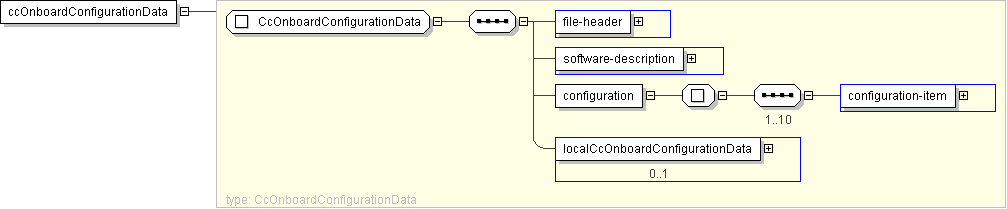

Logical Diagram
h1890473787 h-976935367 h1117027571 h-580705503
XML Instance Representation
<ccOnboardConfigurationData>
<file-header> CPTLoadFileHeader </file-header> [1]
<software-description> OBSWComponent </software-description> [1]
<configuration> [1]
Start Sequence [1..10]
<configuration-item> CC-ConfigurationData </configuration-item> [1]
End Sequence
</configuration>
<localCcOnboardConfigurationData> local:CcOnboardConfigurationData </localCcOnboardConfigurationData> [0..1]
</ccOnboardConfigurationData>

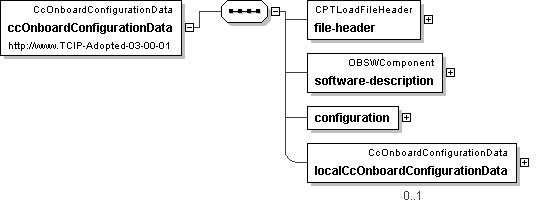

Diagram
h-956766127 h745306881 h892883288 h2070746334
Schema Component Representation
<xs:element name="ccOnboardConfigurationData" type=" CcOnboardConfigurationData "/>
