Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

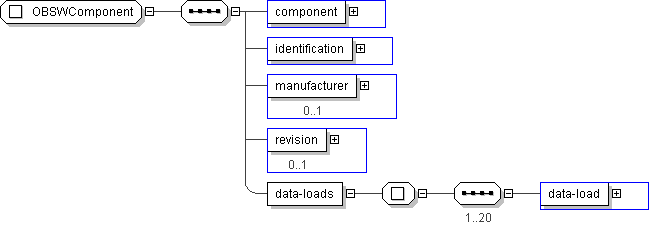

Name	OBSWComponent
Used by (from the same schema document)	Complex Type CcOnboardConfigurationData , Complex Type CcOnboardSoftware , Complex Type FcFareHealth
Abstract	no

XML Instance Representation

<...>

<component> OB-MID </component> [1]

<identification> OB-J1587-SoftwareIdentification </identification> [1]

<manufacturer> CPT-Manufacturer </manufacturer> [0..1]

<revision> CPT-VersionNo </revision> [0..1]

<data-loads> [1]
Start Sequence [1..20]

<data-load> OBSWDataLoadID </data-load> [1]

End Sequence
</data-loads>

</...>

Schema Component Representation

<xs:complexType name="OBSWComponent">

<xs:sequence>

<xs:element name="component" type=" OB-MID "/>

<xs:element name="identification" type=" OB-J1587-SoftwareIdentification "/>

<xs:element name="manufacturer" type=" CPT-Manufacturer " minOccurs="0"/>

<xs:element name="revision" type=" CPT-VersionNo " minOccurs="0"/>

<xs:element name="data-loads">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="data-load" type=" OBSWDataLoadID "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
