Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHMasterScheduleHdr
Used by (from the same schema document)	Complex Type PIPublishedScheduleTable , Complex Type SCHRoute , Complex Type SCHRoute
Abstract	no

XML Instance Representation

<...>
Start Choice [1]

<time-point-ids> [0..1]
Start Sequence [0..*]

<time-point-id> SCH-TimepointID </time-point-id> [1]

End Sequence
</time-point-ids>

<time-point-designators> [0..1]
Start Sequence [0..*]

<time-point-designator> SCH-TimepointDesignator </time-point-designator> [1]

End Sequence
</time-point-designators>

End Choice

<display-names> [1]
Start Sequence [0..*]

<display-name> SCH-TimepointName </display-name> [1]

End Sequence
</display-names>

<display-hdr-info> [0..1]
Start Sequence [0..*]

<display-hdr-info-item> xs:string (length >= 0) </display-hdr-info-item> [1]

End Sequence
</display-hdr-info>

<route-direction-name> SCH-RouteDirectionName </route-direction-name> [1]

<route-direction-description> CPT-Footnote </route-direction-description> [1]

<mode> CPT-Mode </mode> [0..1]

<timetable-version> SCH-TimetableVersionID </timetable-version> [0..1]

</...>

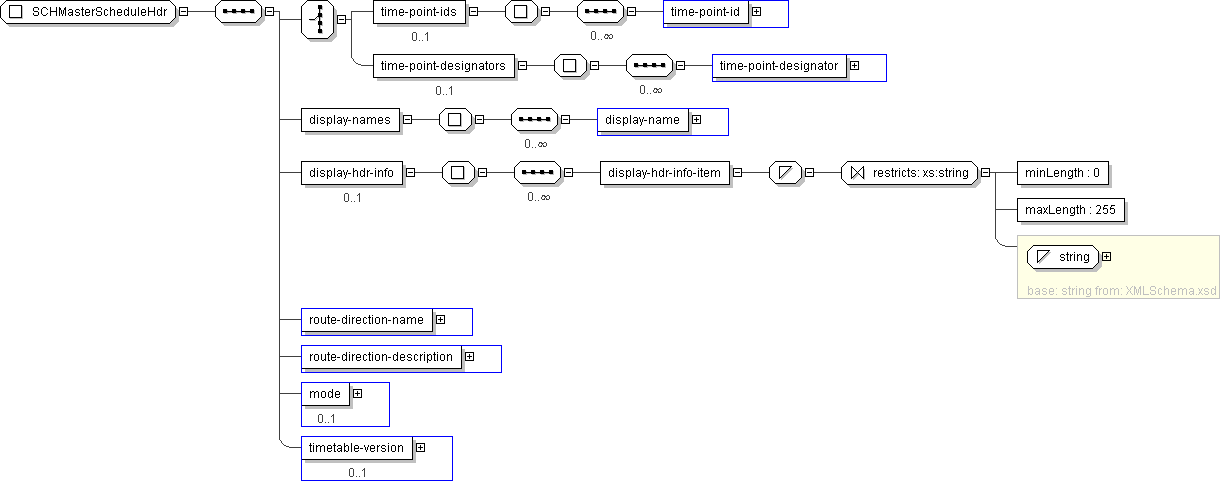

Schema Component Representation

<xs:complexType name="SCHMasterScheduleHdr">

<xs:sequence>

<xs:choice minOccurs="1">

<xs:element name="time-point-ids" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="time-point-id" type=" SCH-TimepointID "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="time-point-designators" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="time-point-designator" type=" SCH-TimepointDesignator "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:choice>

<xs:element name="display-names">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="display-name" type=" SCH-TimepointName "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="display-hdr-info" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="display-hdr-info-item">

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:minLength value="0"/>

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="route-direction-name" type=" SCH-RouteDirectionName "/>

<xs:element name="route-direction-description" type=" CPT-Footnote "/>

<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>

<xs:element name="timetable-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
