Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHRoute
Abstract	no

XML Instance Representation

<...>
Start Choice [1]

<route-designator> SCH-RouteDesignator </route-designator> [0..1]

<route-id> SCH-RouteID </route-id> [0..1]

End Choice

<route-id-short> CC-RouteIDShort </route-id-short> [0..1]

<route-name> SCH-RouteName </route-name> [0..1]

<note-id> SCH-NoteID </note-id> [0..1]

<patterns> [0..1]
Start Sequence [0..*]

<pattern> SCH-PatternID </pattern> [1]

End Sequence
</patterns>

<schedHdr1> SCHMasterScheduleHdr </schedHdr1> [0..1]

<schedHdr2> SCHMasterScheduleHdr </schedHdr2> [0..1]

<mode> CPT-Mode </mode> [0..1]

<timetable-version> SCH-TimetableVersionID </timetable-version> [0..1]

</...>

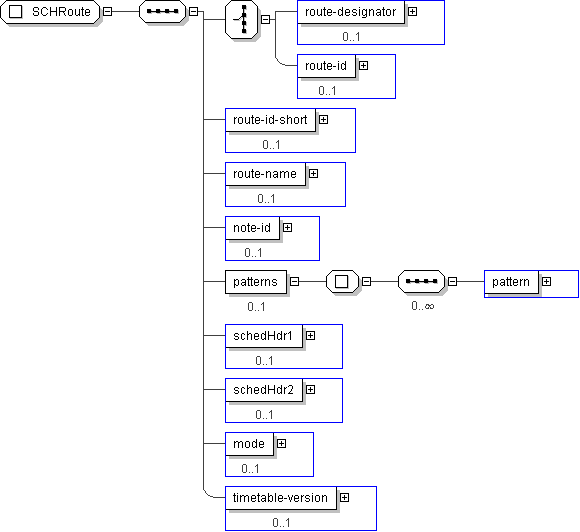

Schema Component Representation

<xs:complexType name="SCHRoute">

<xs:sequence>

<xs:choice minOccurs="1">

<xs:element name="route-designator" type=" SCH-RouteDesignator " minOccurs="0"/>

<xs:element name="route-id" type=" SCH-RouteID " minOccurs="0"/>

</xs:choice>

<xs:element name="route-id-short" type=" CC-RouteIDShort " minOccurs="0"/>

<xs:element name="route-name" type=" SCH-RouteName " minOccurs="0"/>

<xs:element name="note-id" type=" SCH-NoteID " minOccurs="0"/>

<xs:element name="patterns" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="pattern" type=" SCH-PatternID "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="schedHdr1" type=" SCHMasterScheduleHdr " minOccurs="0"/>

<xs:element name="schedHdr2" type=" SCHMasterScheduleHdr " minOccurs="0"/>

<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>

<xs:element name="timetable-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
