Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PIPublishedScheduleTable
Used by (from the same schema document)	Complex Type PIPublishedSchedule
Abstract	no

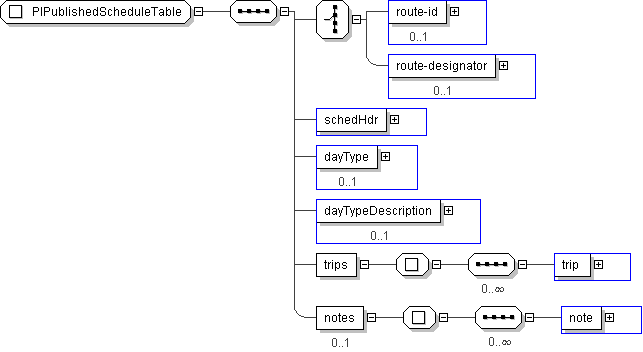

XML Instance Representation

<...>
Start Choice [1]

<route-id> SCH-RouteID </route-id> [0..1]

<route-designator> SCH-RouteDesignator </route-designator> [0..1]

End Choice

<schedHdr> SCHMasterScheduleHdr </schedHdr> [1]

<dayType> SCH-DayType </dayType> [0..1]

<dayTypeDescription> SCH-DayTypeDescription </dayTypeDescription> [0..1]

<trips> [1]
Start Sequence [0..*]

<trip> SCHTrip </trip> [1]

End Sequence
</trips>

<notes> [0..1]
Start Sequence [0..*]

<note> SCHNote </note> [1]

End Sequence
</notes>

</...>

Schema Component Representation

<xs:complexType name="PIPublishedScheduleTable">

<xs:sequence>

<xs:choice minOccurs="1">

<xs:element name="route-id" type=" SCH-RouteID " minOccurs="0"/>

<xs:element name="route-designator" type=" SCH-RouteDesignator " minOccurs="0"/>

</xs:choice>

<xs:element name="schedHdr" type=" SCHMasterScheduleHdr "/>

<xs:element name="dayType" type=" SCH-DayType " minOccurs="0"/>

<xs:element name="dayTypeDescription" type=" SCH-DayTypeDescription " minOccurs="0"/>

<xs:element name="trips">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="trip" type=" SCHTrip "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="note" type=" SCHNote "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
