Documentation for ATIS-Draft-03-00-79

Element: piGeoZoneListSub

[Table of contents]

Name piGeoZoneListSub
Type PiGeoZoneListSub
Nillable no
Abstract no

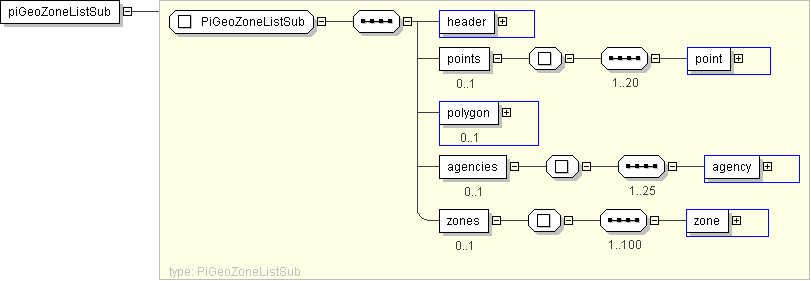

Logical Diagram
h-1421071056 h-1182554234 h1998610167 h-1560728250 h-583096508
XML Instance Representation
<piGeoZoneListSub>
<header> CPTSubscriptionHeader </header> [1]
<points> [0..1]
Start Sequence [1..20]
<point> SPPoint </point> [1]
End Sequence
</points>
<polygon> SPPolygon </polygon> [0..1]
<agencies> [0..1]
Start Sequence [1..25]
<agency> CPT-AgencyID </agency> [1]
End Sequence
</agencies>
<zones> [0..1]
Start Sequence [1..100]
<zone> PIGeoZoneIden </zone> [1]
End Sequence
</zones>
</piGeoZoneListSub>

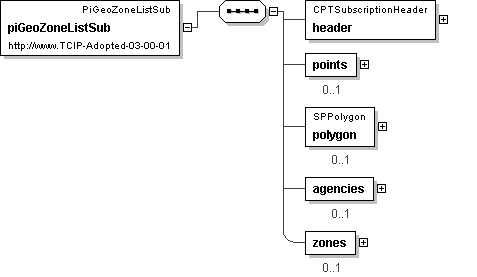

Diagram
h-527207252 h2081204526 h-1414121128 h948193899 h237387587
Schema Component Representation
<xs:element name="piGeoZoneListSub" type=" PiGeoZoneListSub "/>
