Documentation for ATIS-Draft-03-00-79

Element: schPatternList

[Table of contents]

Name schPatternList
Type SchPatternList
Nillable no
Abstract no

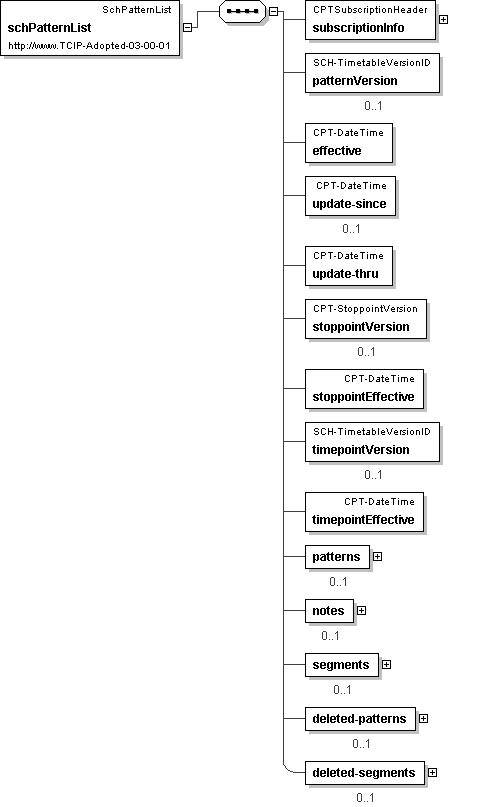

Logical Diagram
h-841091506 h-1783384890 h-594172994 h-1973521021 h-500924166 h-691060297
XML Instance Representation
<schPatternList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<patternVersion> SCH-TimetableVersionID </patternVersion> [0..1]
<effective> CPT-DateTime </effective> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<update-thru> CPT-DateTime </update-thru> [1]
<stoppointVersion> CPT-StoppointVersion </stoppointVersion> [0..1]
<stoppointEffective> CPT-DateTime </stoppointEffective> [1]
<timepointVersion> SCH-TimetableVersionID </timepointVersion> [0..1]
<timepointEffective> CPT-DateTime </timepointEffective> [1]
<patterns> [0..1]
Start Sequence [1..2000]
<pattern> SCHPatternInfo </pattern> [1]
End Sequence
</patterns>
<notes> [0..1]
Start Sequence [1..5000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<segments> [0..1]
Start Sequence [1..15000]
<segment> SCHPatternSegment </segment> [1]
End Sequence
</segments>
<deleted-patterns> [0..1]
Start Sequence [1..5000]
<deleted-pattern> SCHPatternIden </deleted-pattern> [1]
End Sequence
</deleted-patterns>
<deleted-segments> [0..1]
Start Sequence [1..15000]
<deleted-segment> SCHPatternSegmentIden </deleted-segment> [1]
End Sequence
</deleted-segments>
</schPatternList>

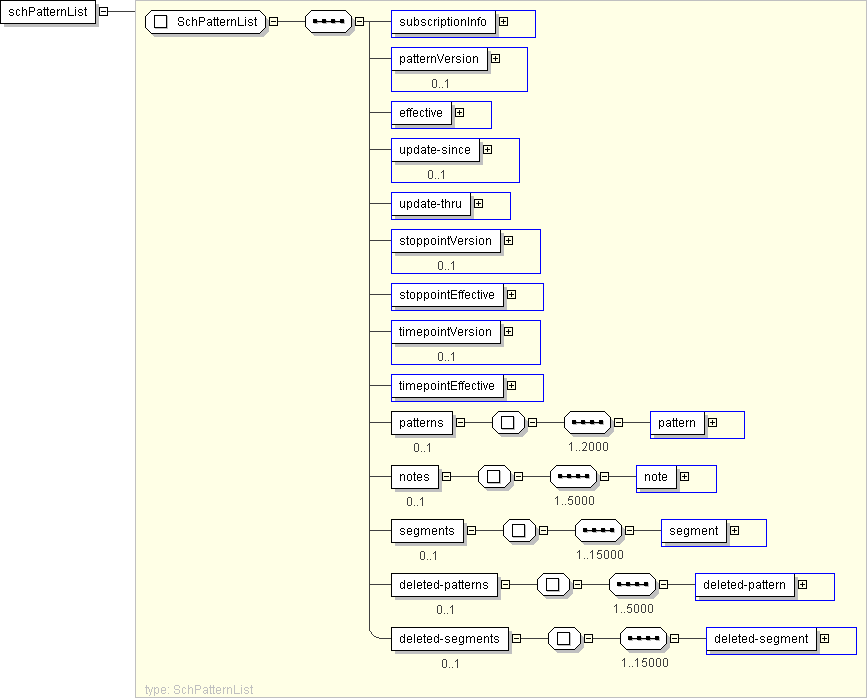

Diagram
h-527207252 h-337950068 h1272267302 h1272267302 h1272267302 h1258252725 h1272267302 h-337950068 h1272267302 h-1937703701 h-1088073133 h-1742093866 h-1937713343 h122395130
Schema Component Representation
<xs:element name="schPatternList" type=" SchPatternList "/>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:
