Documentation for ATIS-Draft-03-00-79

Element: ccVideoImages

[Table of contents]

Name ccVideoImages
Type CcVideoImages
Nillable no
Abstract no

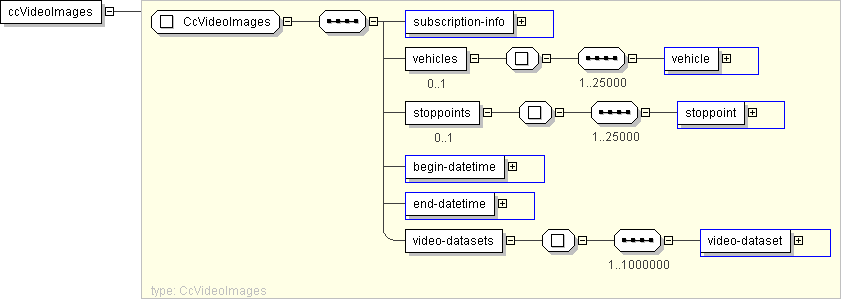

Logical Diagram
h-330032933 h-1015184214 h220470408 h854072240
XML Instance Representation
<ccVideoImages>
<subscription-info> CPTSubscriptionHeader </subscription-info> [1]
<vehicles> [0..1]
Start Sequence [1..25000]
<vehicle> CPTVehicleIden </vehicle> [1]
End Sequence
</vehicles>
<stoppoints> [0..1]
Start Sequence [1..25000]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<begin-datetime> CPT-DateTime </begin-datetime> [1]
<end-datetime> CPT-DateTime </end-datetime> [1]
<video-datasets> [1]
Start Sequence [1..1000000]
<video-dataset> CCVideoRecord </video-dataset> [1]
End Sequence
</video-datasets>
</ccVideoImages>

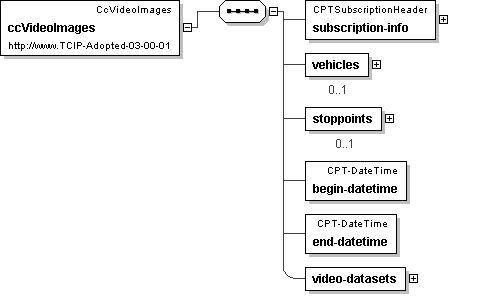

Diagram
h-527207252 h1471596526 h2146772752 h1272267302 h1272267302 h903986151
Schema Component Representation
<xs:element name="ccVideoImages" type=" CcVideoImages "/>
