Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

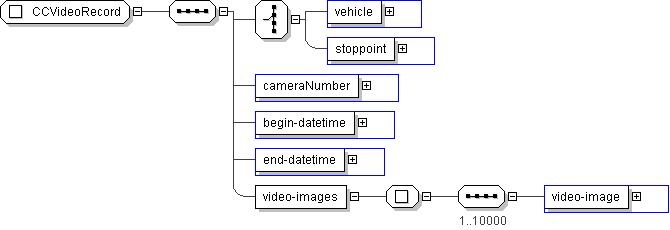

Name	CCVideoRecord
Used by (from the same schema document)	Complex Type CcUnloadImages , Complex Type CcVideoImages
Abstract	no

XML Instance Representation

<...>
Start Choice [1]

<vehicle> CPTVehicleIden </vehicle> [1]

<stoppoint> CPTStoppointIden </stoppoint> [1]

End Choice

<cameraNumber> CPT-GenericCounter </cameraNumber> [1]

<begin-datetime> CPT-DateTime </begin-datetime> [1]

<end-datetime> CPT-DateTime </end-datetime> [1]

<video-images> [1]
Start Sequence [1..10000]

<video-image> PI-BinaryVideoData </video-image> [1]

End Sequence
</video-images>

</...>

Schema Component Representation

<xs:complexType name="CCVideoRecord">

<xs:sequence>

<xs:choice>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

</xs:choice>

<xs:element name="cameraNumber" type=" CPT-GenericCounter "/>

<xs:element name="begin-datetime" type=" CPT-DateTime "/>

<xs:element name="end-datetime" type=" CPT-DateTime "/>

<xs:element name="video-images">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="video-image" type=" PI-BinaryVideoData "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
