Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

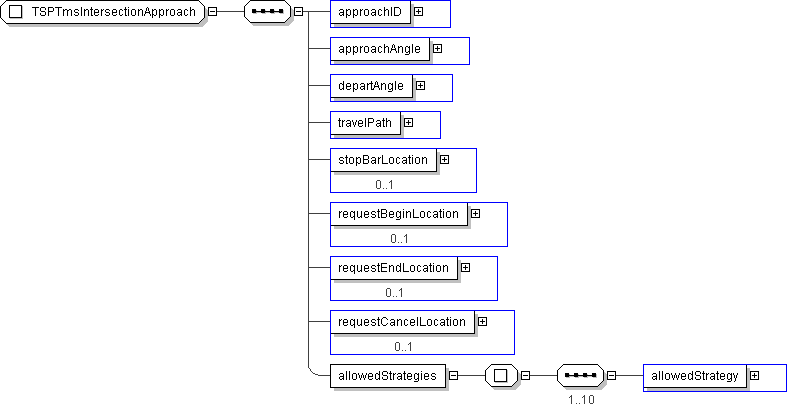

Name	TSPTmsIntersectionApproach
Used by (from the same schema document)	Complex Type TSPIntersectionEntry , Complex Type TSPTmsIntersectionParam
Abstract	no

XML Instance Representation

<...>

<approachID> TSP-ApproachID </approachID> [1]

<approachAngle> lrms:Angle </approachAngle> [1]

<departAngle> lrms:Angle </departAngle> [1]

<travelPath> TSP-IntersectionPath </travelPath> [1]

<stopBarLocation> lrms:GeoLocation </stopBarLocation> [0..1]

<requestBeginLocation> lrms:GeoLocation </requestBeginLocation> [0..1]

<requestEndLocation> lrms:GeoLocation </requestEndLocation> [0..1]

<requestCancelLocation> lrms:GeoLocation </requestCancelLocation> [0..1]

<allowedStrategies> [1]
Start Sequence [1..10]

<allowedStrategy> SCP-PriorityStrategyNumber </allowedStrategy> [1]

End Sequence
</allowedStrategies>

</...>

Schema Component Representation

<xs:complexType name="TSPTmsIntersectionApproach">

<xs:sequence>

<xs:element name="approachID" type=" TSP-ApproachID "/>

<xs:element name="approachAngle" type=" lrms:Angle "/>

<xs:element name="departAngle" type=" lrms:Angle "/>

<xs:element name="travelPath" type=" TSP-IntersectionPath "/>

<xs:element name="stopBarLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="requestBeginLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="requestEndLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="requestCancelLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="allowedStrategies">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="allowedStrategy" type=" SCP-PriorityStrategyNumber "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
