Simple Type: TSP-IntersectionPath

[Table of contents]

Super-types: None
Sub-types: None
Name TSP-IntersectionPath
Used by (from the same schema document) Complex Type TSPStrategyEntry , Complex Type TSPTmsIntersectionApproach
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 8
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'straight thru'|'right turn'|'left turn'|'u turn'|'diag right turn'|'diag left turn'|'sharp right turn'|'sharp left turn'}
Application Data straight thru (1) -- approximately 0 degree turn right turn (2) -- approximately +90 degree turn left turn (3) -- approximately -90 degree turn u turn (4) -- approximately 180 degree turn diag right turn (5) -- approximately +45 degree turn diag left turn (6) -- approximately -45 degree turn sharp right turn (7) -- approximately +135 degree turn sharp left turn (8) -- approximately -135 degree turn

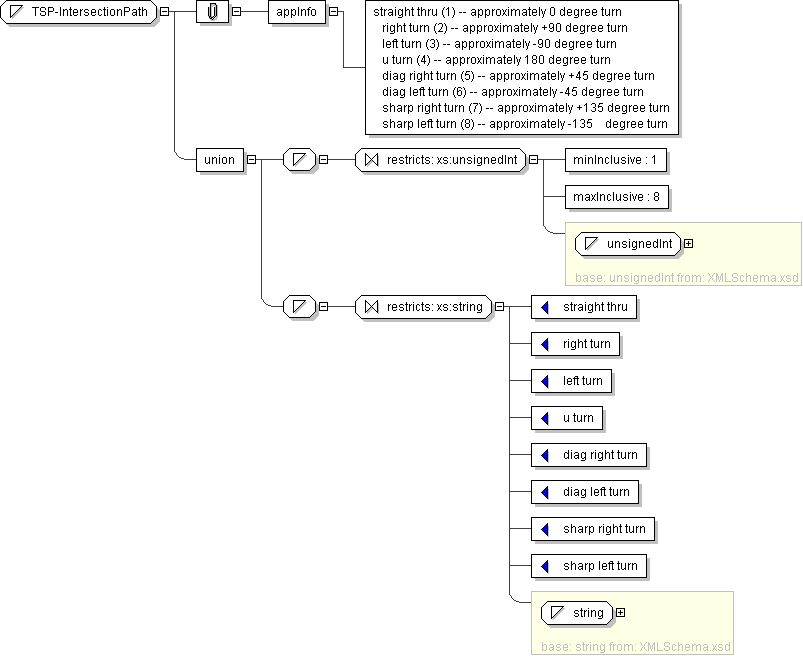

Diagram
Schema Component Representation
<xs:simpleType name="TSP-IntersectionPath">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="8"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="straight thru"/>
<xs:enumeration value="right turn"/>
<xs:enumeration value="left turn"/>
<xs:enumeration value="u turn"/>
<xs:enumeration value="diag right turn"/>
<xs:enumeration value="diag left turn"/>
<xs:enumeration value="sharp right turn"/>
<xs:enumeration value="sharp left turn"/>
</xs:restriction>
</xs:simpleType>
</xs:union>
</xs:simpleType>
