Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

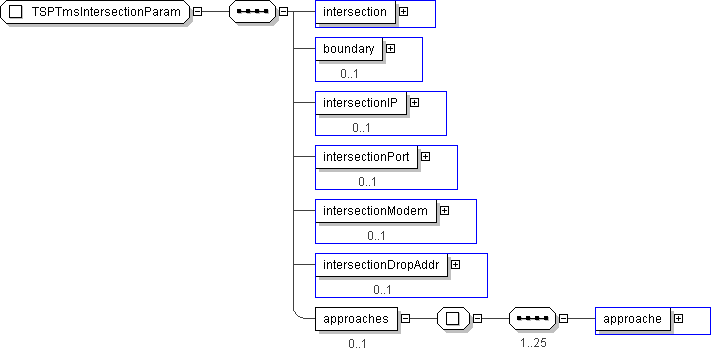

Name	TSPTmsIntersectionParam
Used by (from the same schema document)	Complex Type TSPPRGInputsCCEntry
Abstract	no

XML Instance Representation

<...>

<intersection> CPTIntersectionIden </intersection> [1]

<boundary> TSP-BoundaryID </boundary> [0..1]

<intersectionIP> CPT-IP-Address </intersectionIP> [0..1]

<intersectionPort> CPT-UDP-TCP-PortNumber </intersectionPort> [0..1]

<intersectionModem> TSP-ModemPhoneNum </intersectionModem> [0..1]

<intersectionDropAddr> TSP-DropAddr </intersectionDropAddr> [0..1]

<approaches> [0..1]
Start Sequence [1..25]

<approache> TSPTmsIntersectionApproach </approache> [1]

End Sequence
</approaches>

</...>

Schema Component Representation

<xs:complexType name="TSPTmsIntersectionParam">

<xs:sequence>

<xs:element name="intersection" type=" CPTIntersectionIden "/>

<xs:element name="boundary" type=" TSP-BoundaryID " minOccurs="0"/>

<xs:element name="intersectionIP" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="intersectionPort" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

<xs:element name="intersectionModem" type=" TSP-ModemPhoneNum " minOccurs="0"/>

<xs:element name="intersectionDropAddr" type=" TSP-DropAddr " minOccurs="0"/>

<xs:element name="approaches" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25">

<xs:element name="approache" type=" TSPTmsIntersectionApproach "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
