Documentation for ATIS-Draft-03-00-79

Element: piTextTimetable

[Table of contents]

Name piTextTimetable
Type PiTextTimetable
Nillable no
Abstract no

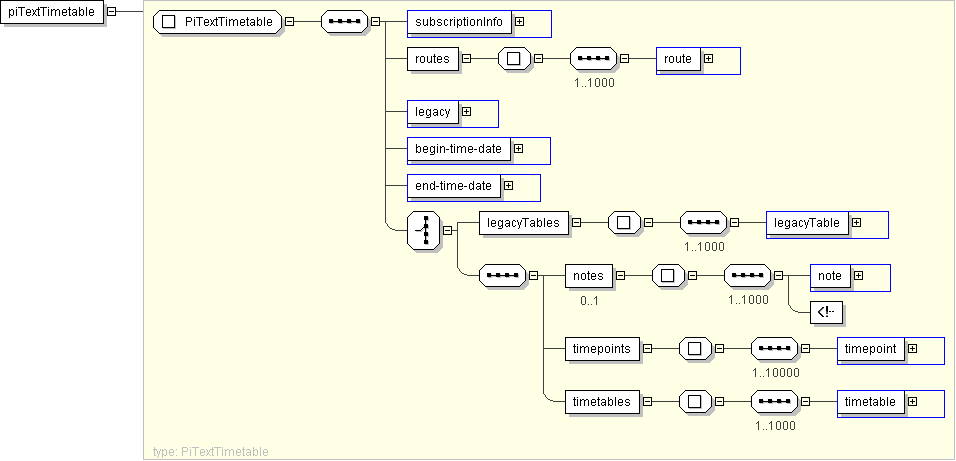

Logical Diagram
h-841091506 h-1124933139 h-1191647247 h-594172994 h-1932139757 h-1830763371
XML Instance Representation
<piTextTimetable>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<routes> [1]
Start Sequence [1..1000]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<legacy> CPT-Boolean </legacy> [1]
<begin-time-date> CPT-DateTime </begin-time-date> [1]
<end-time-date> CPT-DateTime </end-time-date> [1]
Start Choice [1]
<legacyTables> [1]
Start Sequence [1..1000]
<legacyTable> PIPublishedSchedule </legacyTable> [1]
End Sequence
</legacyTables>
<notes> [0..1]
Start Sequence [1..1000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<timepoints> [1]
Start Sequence [1..10000]
<timepoint> PITimetableTimepoint </timepoint> [1]
End Sequence
</timepoints>
<timetables> [1]
Start Sequence [1..1000]
<timetable> PIXMLTimetable </timetable> [1]
End Sequence
</timetables>
End Choice
</piTextTimetable>

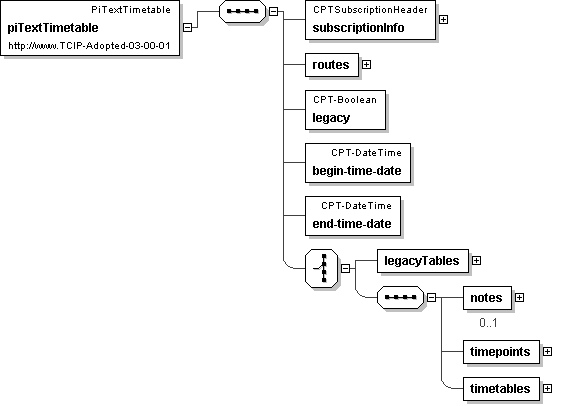

Diagram
h-527207252 h-963684166 h325016637 h1272267302 h1272267302 h1151356199 h-1088073133 h-1436435328 h-1031335160
Schema Component Representation
<xs:element name="piTextTimetable" type=" PiTextTimetable "/>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:
