Documentation for ATIS-Draft-03-00-79

Element: imIncidentUpdate

[Table of contents]

Name imIncidentUpdate
Type ImIncidentUpdate
Nillable no
Abstract no

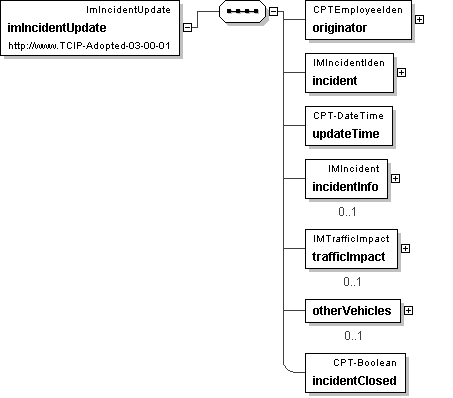

Logical Diagram
h-1139620193 h1352561333 h573499651 h-1238031968 h385102324
XML Instance Representation
<imIncidentUpdate>
<originator> CPTEmployeeIden </originator> [1]
<incident> IMIncidentIden </incident> [1]
<updateTime> CPT-DateTime </updateTime> [1]
<incidentInfo> IMIncident </incidentInfo> [0..1]
<trafficImpact> IMTrafficImpact </trafficImpact> [0..1]
<otherVehicles> [0..1]
Start Sequence [1..100]
<otherVehicle> IMOtherVehicleInvolved </otherVehicle> [1]
End Sequence
</otherVehicles>
<incidentClosed> CPT-Boolean </incidentClosed> [1]
</imIncidentUpdate>

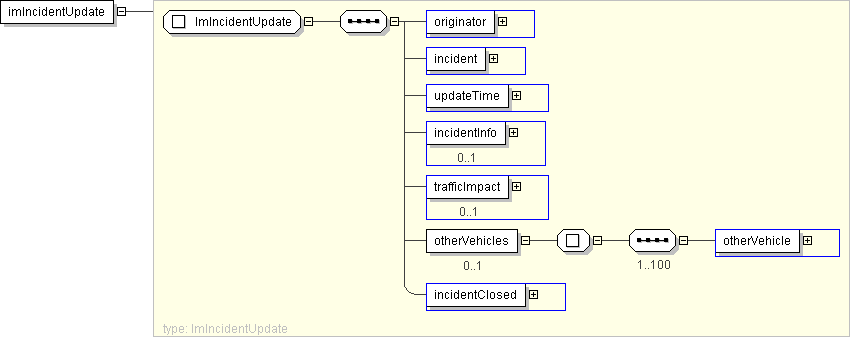

Diagram
h-1303246092 h-1971041825 h1272267302 h1729637435 h1485859802 h1001002828 h325016637
Schema Component Representation
<xs:element name="imIncidentUpdate" type=" ImIncidentUpdate "/>
