Documentation for ATIS-Draft-03-00-79

Element: fcFareHealth

[Table of contents]

Name fcFareHealth
Type FcFareHealth
Nillable no
Abstract no

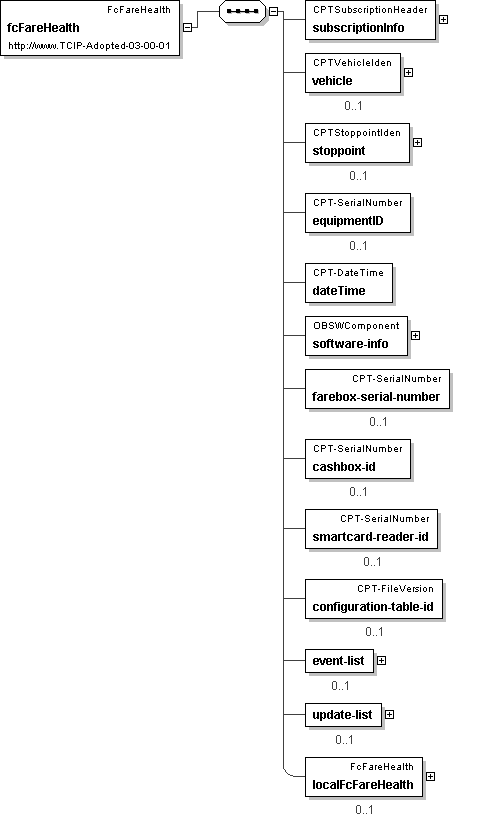

Logical Diagram
h-841091506 h-1556768535 h-2071098037 h-732488431 h1682125076 h974819935 h-1136494257
XML Instance Representation
<fcFareHealth>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<vehicle> CPTVehicleIden </vehicle> [0..1]
<stoppoint> CPTStoppointIden </stoppoint> [0..1]
<equipmentID> CPT-SerialNumber </equipmentID> [0..1]
<dateTime> CPT-DateTime </dateTime> [1]
<software-info> OBSWComponent </software-info> [1]
<farebox-serial-number> CPT-SerialNumber </farebox-serial-number> [0..1]
<cashbox-id> CPT-SerialNumber </cashbox-id> [0..1]
<smartcard-reader-id> CPT-SerialNumber </smartcard-reader-id> [0..1]
<configuration-table-id> CPT-FileVersion </configuration-table-id> [0..1]
<event-list> [0..1]
Start Sequence [1..20]
<event> FCComponentEventInstance </event> [1]
End Sequence
</event-list>
<update-list> [0..1]
Start Sequence [1..20]
<update> FCComponentEventStatusReport </update> [1]
End Sequence
</update-list>
<localFcFareHealth> local:FcFareHealth </localFcFareHealth> [0..1]
</fcFareHealth>

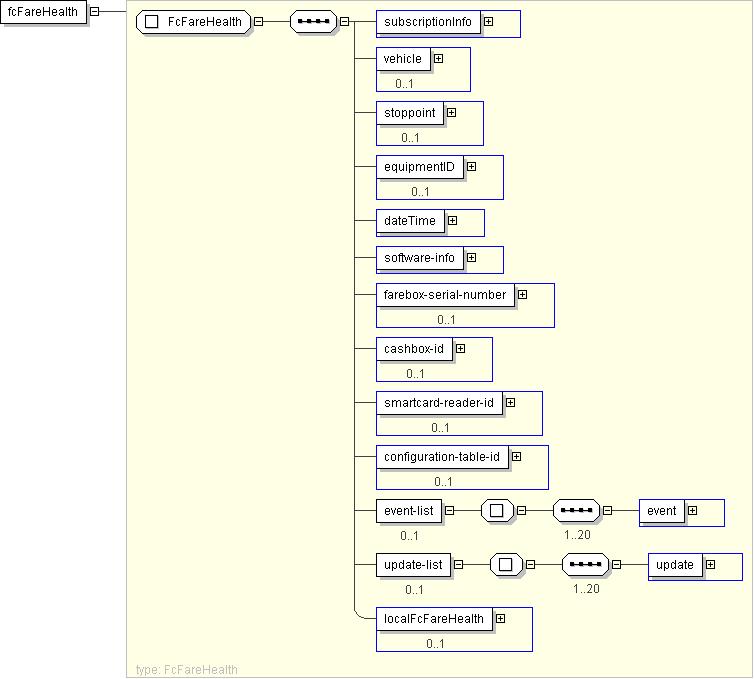

Diagram
h-527207252 h1471596526 h2146772752 h-565816472 h1272267302 h745306881 h-565816472 h-565816472 h-565816472 h1398126929 h-1227843116 h-319610491 h1690667468
Schema Component Representation
<xs:element name="fcFareHealth" type=" FcFareHealth "/>
