Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	InformationRequest
Used by (from the same schema document)	Complex Type ATISMessage , Element informationRequest
Abstract	no

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<returnAddress> URL-Link </returnAddress> [0..1]

Start Choice [1]

<filter> [1]

<location> RouteOrLocation </location> [0..1]

<dataTypes> InformationRequestType </dataTypes> [0..1]

<severity> tmdd:Event-incident-severity </severity> [0..1]

<issueAgency> tmdd:Organization-resource-identifier </issueAgency> [0..16]

<start> DateTimePair </start> [0..1]

<end> DateTimePair </end> [0..1]

</filter>

<eventID> im:ReferenceID </eventID> [1..100]

End Choice

<subscription> SubscribeForm </subscription> [0..1]

<parkingRequest> ParkingRequestDetails </parkingRequest> [0..1]

<verbosity> ReplyVerbosity </verbosity> [0..1]

<language> LanguageCode </language> [0..1]

<tail> Tail </tail> [0..1]

<localInformationRequest> local:InformationRequest </localInformationRequest> [0..1]

</...>

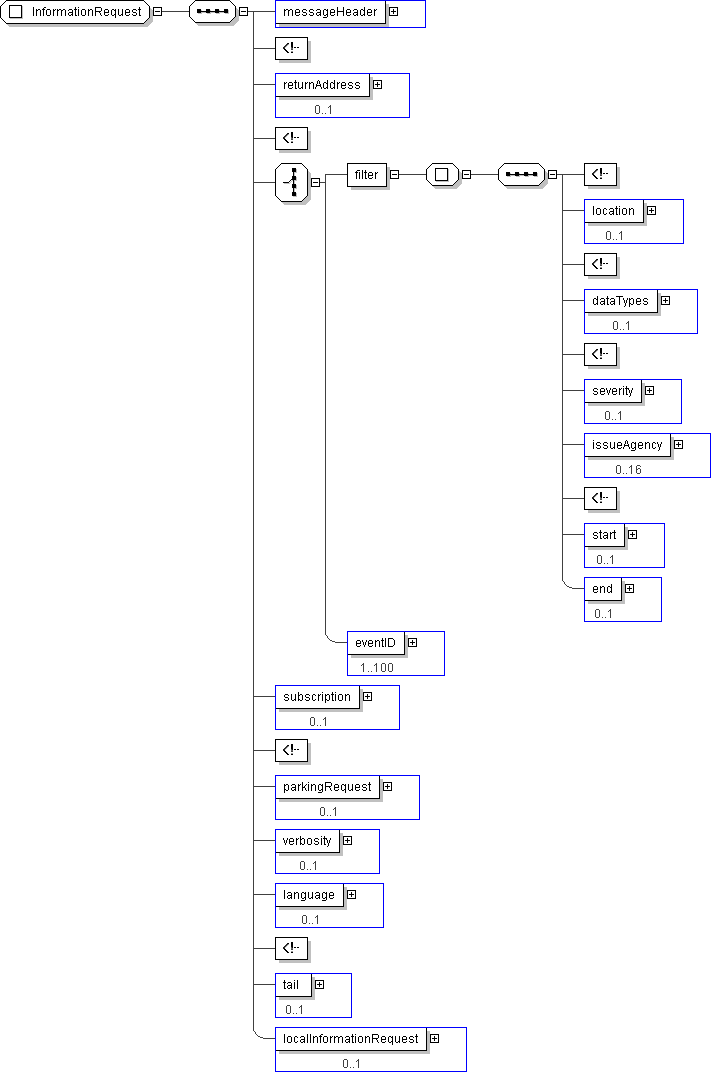

Schema Component Representation

<xs:complexType name="InformationRequest">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<-- contains the message id, sender, time, etc. -->

<xs:element name="returnAddress" type=" URL-Link " minOccurs="0"/>

<-- this string may be a URI, an email, an IP, or other format to establish a return path -->

<xs:choice>

<xs:element name="filter">

<xs:complexType>

<xs:sequence>

<-- information filters to apply in the request -->

<xs:element name="location" type=" RouteOrLocation " minOccurs="0"/>

<-- the location for which data is sought -->

<xs:element name="dataTypes" type=" InformationRequestType " minOccurs="0"/>

<-- organized sets of data to request -->

<xs:element name="severity" type=" tmdd:Event-incident-severity " minOccurs="0"/>

<xs:element name="issueAgency" type=" tmdd:Organization-resource-identifier " minOccurs="0" maxOccurs="16"/>

<-- centers that originated the data -->

<xs:element name="start" type=" DateTimePair " minOccurs="0"/>

<xs:element name="end" type=" DateTimePair " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="eventID" type=" im:ReferenceID " minOccurs="1" maxOccurs="100"/>

</xs:choice>

<xs:element name="subscription" type=" SubscribeForm " minOccurs="0"/>

<-- if a subscribe is present, values inside it will provide the time interval and frequency of the subscribe -->

<xs:element name="parkingRequest" type=" ParkingRequestDetails " minOccurs="0"/>

<xs:element name="verbosity" type=" ReplyVerbosity " minOccurs="0"/>

<xs:element name="language" type=" LanguageCode " minOccurs="0"/>

<-- the requested language of the response -->

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localInformationRequest" type=" local:InformationRequest " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
