Documentation for ATIS-Draft-03-00-79

Element: informationRequest

[Table of contents]

Name informationRequest
Type InformationRequest
Nillable no
Abstract no

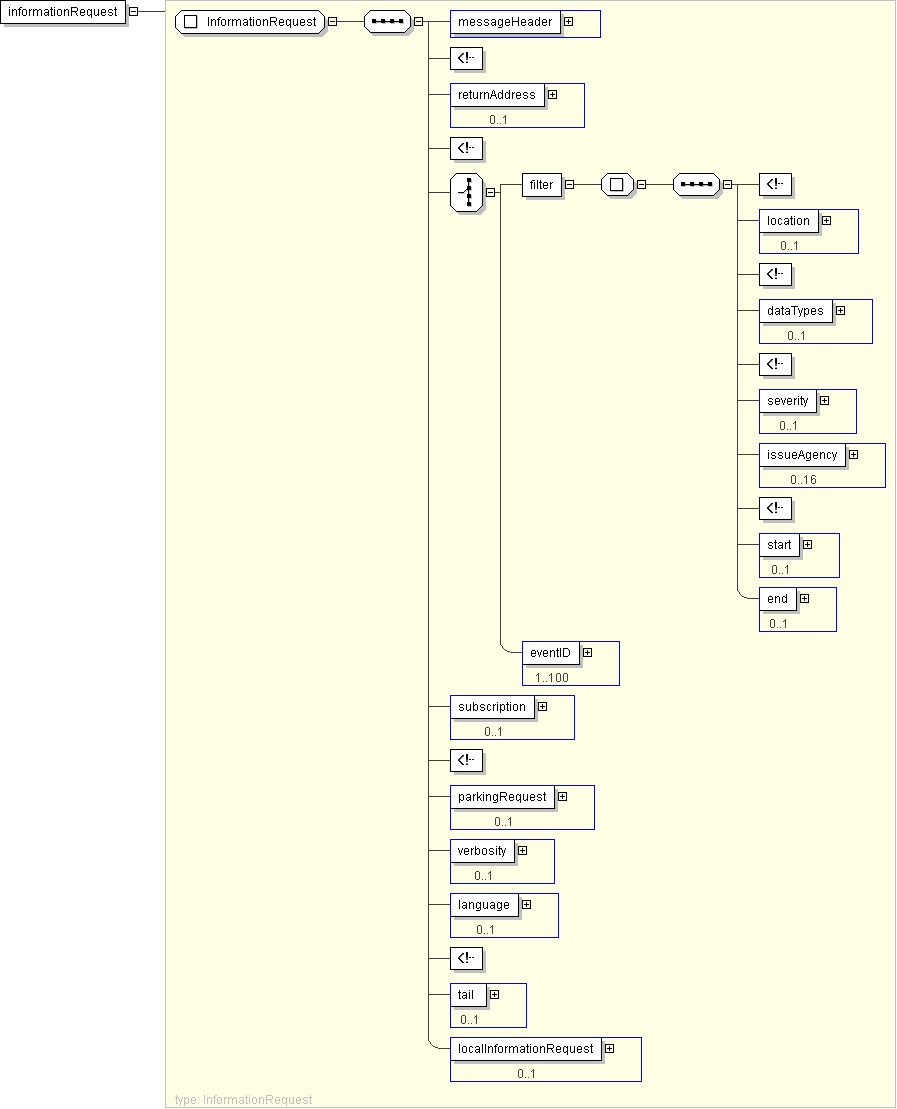

Logical Diagram
h1592882545 h-1474292197 h-1763320448 h1304932186 h-573191245 h230085195
XML Instance Representation
<informationRequest>
<messageHeader> MessageHeader </messageHeader> [1]
<returnAddress> URL-Link </returnAddress> [0..1]
Start Choice [1]
<filter> [1]
<location> RouteOrLocation </location> [0..1]
<dataTypes> InformationRequestType </dataTypes> [0..1]
<severity> tmdd:Event-incident-severity </severity> [0..1]
<issueAgency> tmdd:Organization-resource-identifier </issueAgency> [0..16]
<start> DateTimePair </start> [0..1]
<end> DateTimePair </end> [0..1]
</filter>
<eventID> im:ReferenceID </eventID> [1..100]
End Choice
<subscription> SubscribeForm </subscription> [0..1]
<parkingRequest> ParkingRequestDetails </parkingRequest> [0..1]
<verbosity> ReplyVerbosity </verbosity> [0..1]
<language> LanguageCode </language> [0..1]
<tail> Tail </tail> [0..1]
<localInformationRequest> local:InformationRequest </localInformationRequest> [0..1]
</informationRequest>

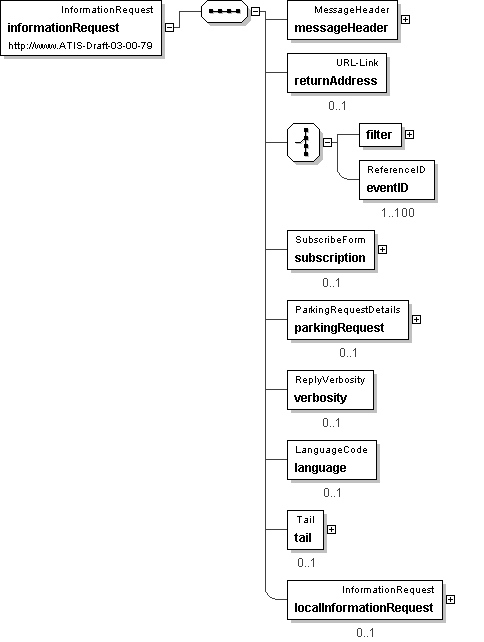

Diagram
h-431763185 h882153789 h-2060357956 h-169799582 h-1633813760 h-632460109 h1210973722 h1210973722 h-689557503 h-1268708151 h306487078 h-637533562 h-1491237270 h518407765 h1075368200
Schema Component Representation
<xs:element name="informationRequest" type=" InformationRequest "/>
