Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	InformationRequestType
Used by (from the same schema document)	Complex Type InformationRequest
Abstract	no

XML Instance Representation

<...>

<all> xs:boolean </all> [0..1]

<disasters> xs:boolean </disasters> [0..1]

<alerts> xs:boolean </alerts> [0..1]

<weather> WeatherTypes </weather> [0..16]

<roads> RoadTypes </roads> [0..16]

<events> EventTypes </events> [0..16]

<incidents> EventTypes </incidents> [0..16]

<flights> FlightTypes </flights> [0..16]

<transit> TransitTypes </transit> [0..16]

<routes> RouteTypes </routes> [0..16]

<itineraries> RouteTypes </itineraries> [0..16]

<detourRoutes> RouteTypes </detourRoutes> [0..16]

<detourItineraries> RouteTypes </detourItineraries> [0..16]

<parkingLots> ParkingTypes </parkingLots> [0..16]

<localInformationRequestType> local:InformationRequestType </localInformationRequestType> [0..1]

</...>

Schema Component Representation

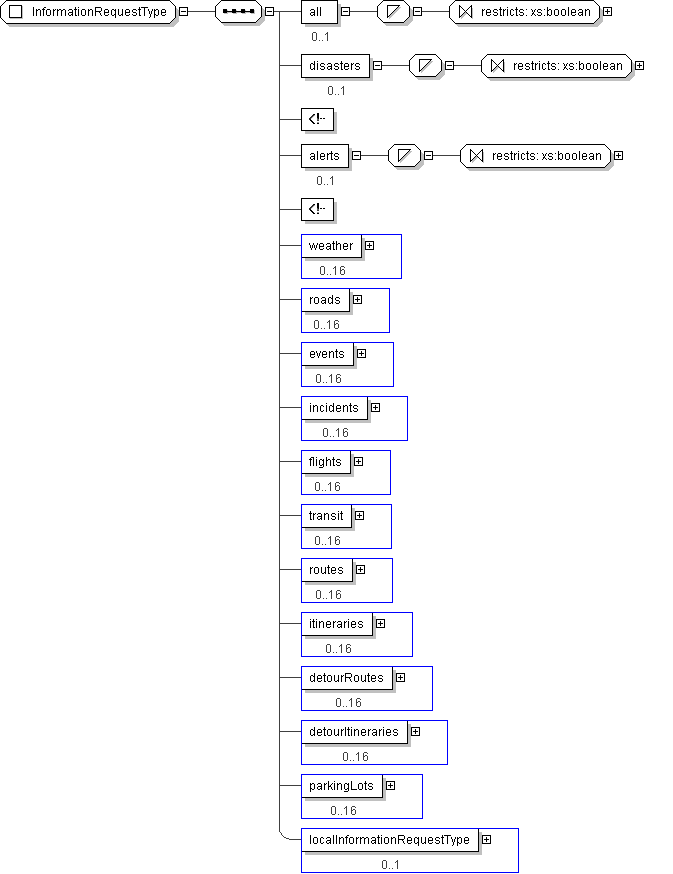

<xs:complexType name="InformationRequestType">

<xs:sequence>

<xs:element name="all" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<xs:element name="disasters" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- both man made and natural -->

<xs:element name="alerts" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- all types of alert messages including systems status and public safety -->

<xs:element name="weather" type=" WeatherTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="roads" type=" RoadTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="events" type=" EventTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="incidents" type=" EventTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="flights" type=" FlightTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="transit" type=" TransitTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="routes" type=" RouteTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="itineraries" type=" RouteTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="detourRoutes" type=" RouteTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="detourItineraries" type=" RouteTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="parkingLots" type=" ParkingTypes " minOccurs="0" maxOccurs="16"/>

<xs:element name="localInformationRequestType" type=" local:InformationRequestType " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

Complex Type: InformationRequestType
