Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ContactSetting
Used by (from the same schema document)	Complex Type TravelerSettingsRequest , Complex Type MessageHeader
Abstract	no

XML Instance Representation

<...>

<agencyIdentifier> tmdd:Organization-resource-identifier </agencyIdentifier> [0..1]

<agencyLocation> lrms:AreaLocation </agencyLocation> [0..1]

<agencyName> tmdd:Link-ownership </agencyName> [0..1]

<userIdentity> Traveler-Identity </userIdentity> [0..1]

<userSetting> Traveler-Setting </userSetting> [0..1]

<deviceIdentity> Setting-Identity </deviceIdentity> [0..1]

<person> PersonName </person> [0..1]

<contacts> ContactInformation </contacts> [0..1]

<address> lrms:Address </address> [0..1]

<device> TravelerDeviceSetting </device> [0..16]

<tail> Tail </tail> [0..1]

</...>

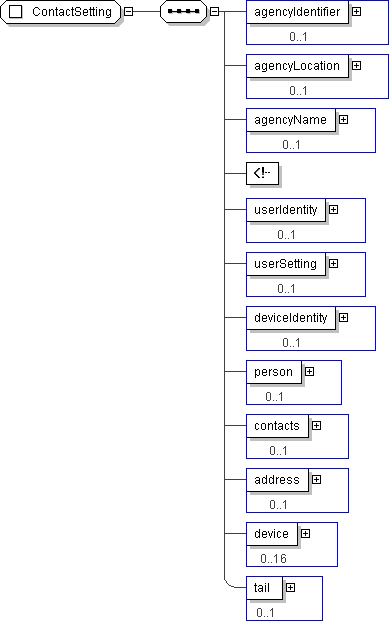

Schema Component Representation

<xs:complexType name="ContactSetting">

<xs:sequence>

<xs:element name="agencyIdentifier" type=" tmdd:Organization-resource-identifier " minOccurs="0"/>

<xs:element name="agencyLocation" type=" lrms:AreaLocation " minOccurs="0"/>

<xs:element name="agencyName" type=" tmdd:Link-ownership " minOccurs="0"/>

<-- TMDD.Contact-organization-name -->

<xs:element name="userIdentity" type=" Traveler-Identity " minOccurs="0"/>

<xs:element name="userSetting" type=" Traveler-Setting " minOccurs="0"/>

<xs:element name="deviceIdentity" type=" Setting-Identity " minOccurs="0"/>

<xs:element name="person" type=" PersonName " minOccurs="0"/>

<xs:element name="contacts" type=" ContactInformation " minOccurs="0"/>

<xs:element name="address" type=" lrms:Address " minOccurs="0"/>

<xs:element name="device" type=" TravelerDeviceSetting " minOccurs="0" maxOccurs="16"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
