Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

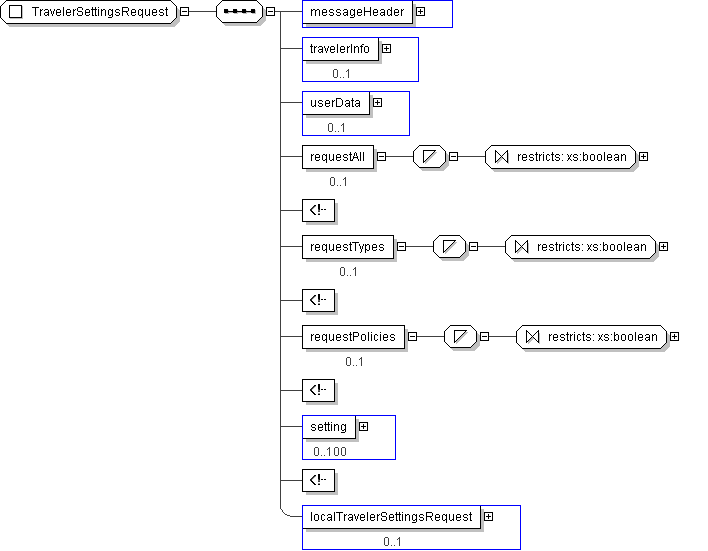

Name	TravelerSettingsRequest
Used by (from the same schema document)	Element travelerSettingsRequest
Abstract	no

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<travelerInfo> Traveler-Identity </travelerInfo> [0..1]

<userData> ContactSetting </userData> [0..1]

<requestAll> xs:boolean </requestAll> [0..1]

<requestTypes> xs:boolean </requestTypes> [0..1]

<requestPolicies> xs:boolean </requestPolicies> [0..1]

<setting> SettingEntries </setting> [0..100]

<localTravelerSettingsRequest> local:TravelerSettingsRequest </localTravelerSettingsRequest> [0..1]

</...>

Schema Component Representation

<xs:complexType name="TravelerSettingsRequest">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<xs:element name="travelerInfo" type=" Traveler-Identity " minOccurs="0"/>

<xs:element name="userData" type=" ContactSetting " minOccurs="0"/>

<xs:element name="requestAll" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- reply with all setting of record -->

<xs:element name="requestTypes" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- reply stating all supported setting types -->

<xs:element name="requestPolicies" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- reply with a URL to the use policies of this ISP -->

<xs:element name="setting" type=" SettingEntries " minOccurs="0" maxOccurs="100"/>

<-- the sequence of setting values to be changed -->

<xs:element name="localTravelerSettingsRequest" type=" local:TravelerSettingsRequest " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
