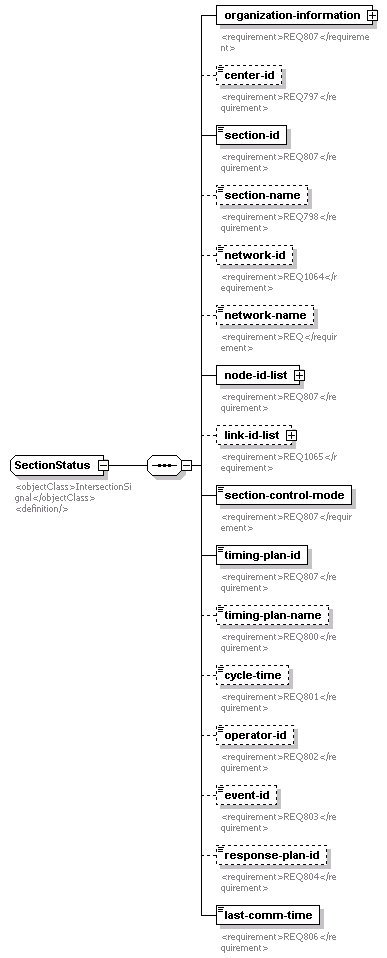

complexType SectionStatus
diagram
namespace http://www.ite.org/tmdd
children organization-information center-id section-id section-name network-id network-name node-id-list link-id-list section-control-mode timing-plan-id timing-plan-name cycle-time operator-id event-id response-plan-id last-comm-time
used by
element sectionStatus
annotation
documentation
<objectClass>IntersectionSignal</objectClass>
<definition/>
source <xs:complexType name="SectionStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ807</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ797</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="section-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ807</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="section-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ798</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1064</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="network-name" type="Roadway-network-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="node-id-list">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ807</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="node-id" type="SectionNodeList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-id-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1065</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link-id" type="SectionLinkList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="section-control-mode" type="Section-signal-control-mode">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ807</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ807</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ800</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cycle-time" type="ntcip:PatternCycleTime" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ801</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ802</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ803</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ804</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-comm-time" type="DateTimeZone">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ806</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <!-- xs:element name="operator-last-revised" type="Organization-resource-name" minOccurs="0" -->
  </xs:sequence>
</xs:complexType>

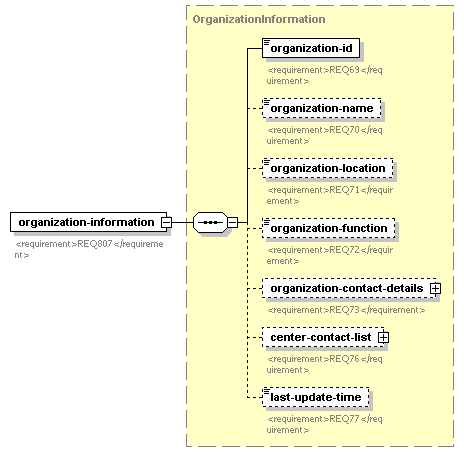

element SectionStatus/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ807</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ807</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/center-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ797</requirement>
source <xs:element name="center-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ797</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/section-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ807</requirement>
source <xs:element name="section-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ807</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/section-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ798</requirement>
source <xs:element name="section-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ798</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/network-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ1064</requirement>
source <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1064</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/network-name
diagram
type Roadway-network-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="network-name" type="Roadway-network-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/node-id-list
diagram
properties
isRef 0
content complex
children node-id
annotation
documentation
<requirement>REQ807</requirement>
source <xs:element name="node-id-list">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ807</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="node-id" type="SectionNodeList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

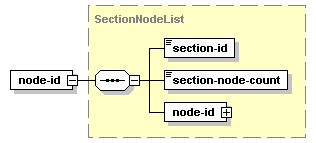

element SectionStatus/node-id-list/node-id
diagram
type SectionNodeList
properties
isRef 0
content complex
children section-id section-node-count node-id
source <xs:element name="node-id" type="SectionNodeList"/>

element SectionStatus/link-id-list
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children link-id
annotation
documentation
<requirement>REQ1065</requirement>
source <xs:element name="link-id-list" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1065</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link-id" type="SectionLinkList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

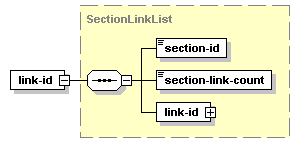

element SectionStatus/link-id-list/link-id
diagram
type SectionLinkList
properties
isRef 0
content complex
children section-id section-link-count link-id
source <xs:element name="link-id" type="SectionLinkList"/>

element SectionStatus/section-control-mode
diagram
type Section-signal-control-mode
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ807</requirement>
source <xs:element name="section-control-mode" type="Section-signal-control-mode">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ807</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/timing-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ807</requirement>
source <xs:element name="timing-plan-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ807</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/timing-plan-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ800</requirement>
source <xs:element name="timing-plan-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ800</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/cycle-time
diagram
type ntcip:PatternCycleTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ801</requirement>
source <xs:element name="cycle-time" type="ntcip:PatternCycleTime" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ801</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/operator-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ802</requirement>
source <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ802</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/event-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ803</requirement>
source <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ803</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/response-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ804</requirement>
source <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ804</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element SectionStatus/last-comm-time
diagram
type DateTimeZone
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ806</requirement>
source <xs:element name="last-comm-time" type="DateTimeZone">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ806</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
