complexType SectionNodeList

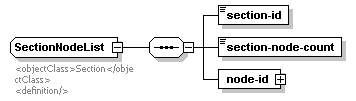

diagram
namespace	http://www.ite.org/tmdd
children	section-id section-node-count node-id
used by	element  SectionStatus/node-id-list/node-id
annotation	documentation <objectClass>Section</objectClass> <definition/>
source	<xs:complexType name="SectionNodeList">   <xs:annotation>     <xs:documentation>       <objectClass>Section</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="section-id" type="Organization-resource-identifier"/>     <xs:element name="section-node-count" type="Section-node-count"/>     <xs:element name="node-id">       <xs:complexType>         <xs:sequence maxOccurs="255">           <xs:element name="node-id-item" type="Roadway-network-identifier"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element SectionNodeList/section-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="section-id" type="Organization-resource-identifier"/>

element SectionNodeList/section-node-count

diagram
type	Section-node-count
properties	isRef  0 content  simple
facets	minInclusive  1
source	<xs:element name="section-node-count" type="Section-node-count"/>

element SectionNodeList/node-id

diagram
properties	isRef  0 content  complex
children	node-id-item
source	<xs:element name="node-id">   <xs:complexType>     <xs:sequence maxOccurs="255">       <xs:element name="node-id-item" type="Roadway-network-identifier"/>     </xs:sequence>   </xs:complexType> </xs:element>

element SectionNodeList/node-id/node-id-item

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="node-id-item" type="Roadway-network-identifier"/>
