complexType lrms:StreetInfo

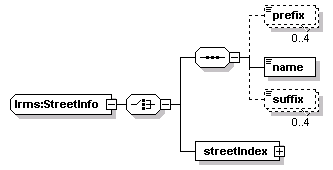

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	prefix name suffix streetIndex
used by	elements  lrms:CrossStreetsPoint/atStreetInfo lrms:CrossStreetsLink/fromStreetInfo lrms:CrossStreetsLink/onStreetInfo lrms:CrossStreetsPoint/onStreetInfo lrms:AreaLocation/roads/road lrms:NodeAttribute/streets/street lrms:AddressLink/streetInfo lrms:AddressPoint/streetInfo lrms:CrossStreetsLink/toStreetInfo lrms:LinearReference/transElement
source	<xs:complexType name="StreetInfo">   <xs:choice>     <xs:sequence>       <xs:element name="prefix" type="Text-name-presuf4" minOccurs="0" maxOccurs="4"/>       <xs:element name="name" type="Text-name255"/>       <xs:element name="suffix" type="Text-name-presuf4" minOccurs="0" maxOccurs="4"/>     </xs:sequence>     <xs:element name="streetIndex" type="IdType"/>   </xs:choice> </xs:complexType>

element lrms:StreetInfo/prefix

diagram
type	lrms:Text-name-presuf4
properties	isRef  0 minOcc  0 maxOcc  4 content  simple
facets	minLength  1 maxLength  4
source	<xs:element name="prefix" type="Text-name-presuf4" minOccurs="0" maxOccurs="4"/>

element lrms:StreetInfo/name

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="name" type="Text-name255"/>

element lrms:StreetInfo/suffix

diagram
type	lrms:Text-name-presuf4
properties	isRef  0 minOcc  0 maxOcc  4 content  simple
facets	minLength  1 maxLength  4
source	<xs:element name="suffix" type="Text-name-presuf4" minOccurs="0" maxOccurs="4"/>

element lrms:StreetInfo/streetIndex

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="streetIndex" type="IdType"/>
