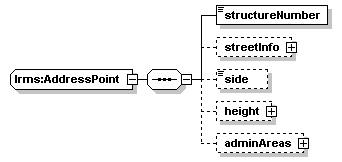

complexType lrms:AddressPoint

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	structureNumber streetInfo side height adminAreas
used by	elements  lrms:Address/addressPoint lrms:PointLocation/addressPoint
source	<xs:complexType name="AddressPoint">   <xs:sequence>     <xs:element name="structureNumber" type="Text-name255"/>     <xs:element name="streetInfo" type="StreetInfo" minOccurs="0"/>     <xs:element name="side" type="Side" minOccurs="0"/>     <xs:element name="height" type="Height" minOccurs="0"/>     <xs:element name="adminAreas" type="AdminAreaGroup" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:AddressPoint/structureNumber

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="structureNumber" type="Text-name255"/>

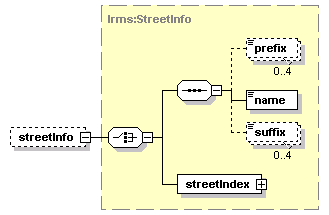

element lrms:AddressPoint/streetInfo

diagram
type	lrms:StreetInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	prefix name suffix streetIndex
source	<xs:element name="streetInfo" type="StreetInfo" minOccurs="0"/>

element lrms:AddressPoint/side

diagram
type	lrms:Side
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="side" type="Side" minOccurs="0"/>

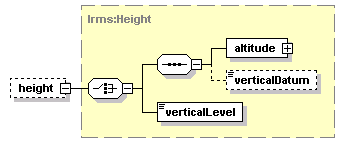

element lrms:AddressPoint/height

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="height" type="Height" minOccurs="0"/>

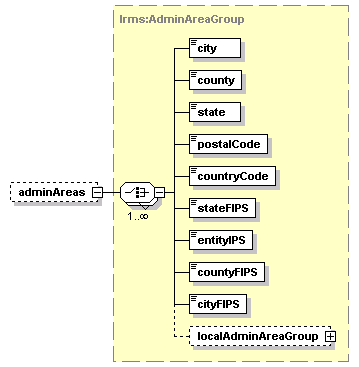

element lrms:AddressPoint/adminAreas

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="adminAreas" type="AdminAreaGroup" minOccurs="0"/>
