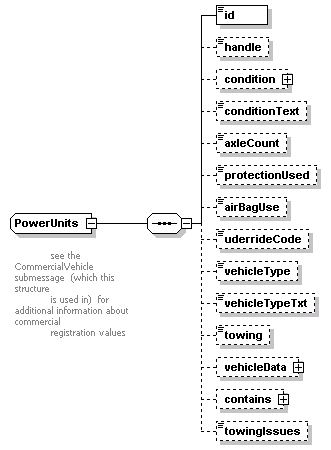

| element | CargoVehicle/powerUnits/powerUnit |
| documentation |
| see the CommercialVehicle submessage (which this structure is used in) for additional information about commercial registration values |
<xs:annotation>
<xs:documentation>
see the CommercialVehicle submessage (which this structure
is used in) for additional information about commercial
registration values
</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="id" type="PowerUnitID"/>
<!-- the reference number for this unit / object
(typically assigned by the CAD) -->
<xs:element name="handle" minOccurs="0">
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:minLength value="1"/>
<xs:maxLength value="32"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
<!-- a human readable / assigned name for the object
(typically assigned by on scene personal, such as "red_truck") -->
<xs:element name="condition" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="32">
<xs:element name="condition-item" type="UnitCondition"/>
<!-- the current condition of this vehicle place most relevant one first in list -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="conditionText" type="FreeText" minOccurs="0"/>
<!-- any free text condition of this cargo unit -->
<xs:element name="axleCount" type="AxleCount" minOccurs="0"/>
<!-- wieght to be added too -->
<xs:element name="protectionUsed" type="OccupantProtectionSystemUsed" minOccurs="0"/>
<xs:element name="airBagUse" type="AirBagDeployed" minOccurs="0"/>
<xs:element name="uderrideCode" type="UnderrideOverrideCode" minOccurs="0"/>
<xs:element name="vehicleType" type="PowerUnitType" minOccurs="0"/>
<!-- a list of common power unit types -->
<xs:element name="vehicleTypeTxt" type="FreeText" minOccurs="0"/>
<!-- free text when above list is not suitable -->
<xs:element name="towing" minOccurs="0">
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:minLength value="0"/>
<xs:maxLength value="1000"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
<!-- any further data on tow points or recovery process -->

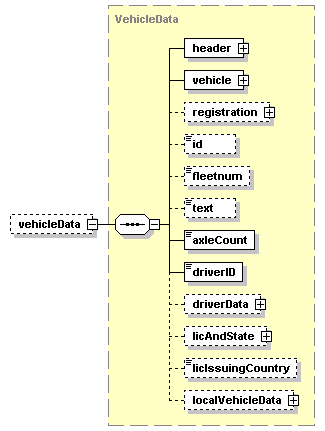

<xs:element name="vehicleData" type="VehicleData" minOccurs="0"/>
<!-- various data about the unit such as
license number, VIN etc.
most of the actual elements come from
SAE and other
industry standards such as NCIC work -->

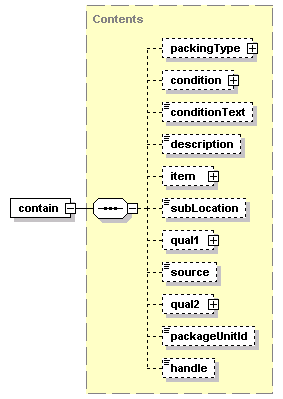

<xs:element name="contains" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="32">
<xs:element name="contain" type="Contents"/>
<!-- information on any specific packages and cargo found here includes proper shipping name, hazmat labels, and location within unit -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="towingIssues" type="FreeText" minOccurs="0"/>
<!-- any special issues with recovery or towing to be
aware of would be placed here. -->
</xs:sequence>
</xs:complexType>
