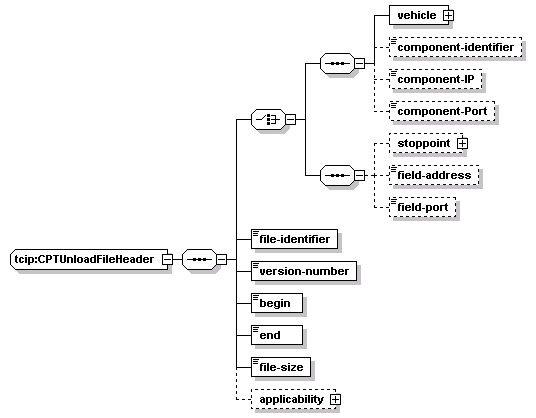

complexType tcip:CPTUnloadFileHeader

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle component-identifier component-IP component-Port stoppoint field-address field-port file-identifier version-number begin end file-size applicability
used by	elements  tcip:CptFilesToUnload/available-files/available-file tcip:CptUnloadControl/file-to-unload tcip:CcPTVPerformanceData/fileHeader tcip:CcUnloadImages/fileHeader tcip:FcUnloadData/fileHeader tcip:TspEventLogUnload/fileHeader tcip:CptUnloadControl/files-to-delete/files-to-delete-item tcip:CptUnloadRequestError/unavailable-file
source	<xs:complexType name="CPTUnloadFileHeader">   <xs:sequence>     <xs:choice>       <xs:sequence>         <xs:element name="vehicle" type="CPTVehicleIden"/>         <xs:element name="component-identifier" type="OB-MID" minOccurs="0"/>         <xs:element name="component-IP" type="CPT-IP-Address" minOccurs="0"/>         <xs:element name="component-Port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>       </xs:sequence>       <xs:sequence>         <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>         <!-- required if a stoppoint -->         <xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>         <xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>       </xs:sequence>     </xs:choice>     <xs:element name="file-identifier" type="CPT-FileIdentifier"/>     <xs:element name="version-number" type="CPT-FileVersion"/>     <xs:element name="begin" type="CPT-DateTime"/>     <xs:element name="end" type="CPT-DateTime"/>     <xs:element name="file-size" type="CPT-FileSize"/>     <xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTUnloadFileHeader/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CPTUnloadFileHeader/component-identifier

diagram
type	tcip:OB-MID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-identifier" type="OB-MID" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/component-IP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-IP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/component-Port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-Port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/field-address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/field-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CPTUnloadFileHeader/file-identifier

diagram
type	tcip:CPT-FileIdentifier
properties	isRef  0 content  simple
source	<xs:element name="file-identifier" type="CPT-FileIdentifier"/>

element tcip:CPTUnloadFileHeader/version-number

diagram
type	tcip:CPT-FileVersion
properties	isRef  0 content  simple
source	<xs:element name="version-number" type="CPT-FileVersion"/>

element tcip:CPTUnloadFileHeader/begin

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="begin" type="CPT-DateTime"/>

element tcip:CPTUnloadFileHeader/end

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="end" type="CPT-DateTime"/>

element tcip:CPTUnloadFileHeader/file-size

diagram
type	tcip:CPT-FileSize
properties	isRef  0 content  simple
source	<xs:element name="file-size" type="CPT-FileSize"/>

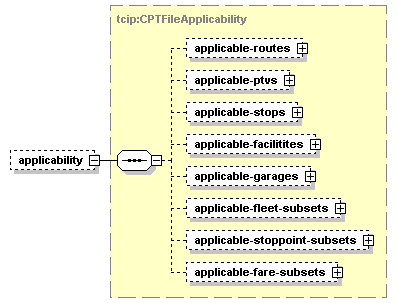

element tcip:CPTUnloadFileHeader/applicability

diagram
type	tcip:CPTFileApplicability
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	applicable-routes applicable-ptvs applicable-stops applicable-facilitites applicable-garages applicable-fleet-subsets applicable-stoppoint-subsets applicable-fare-subsets
source	<xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>
