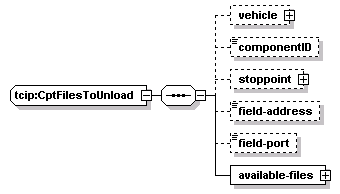

complexType tcip:CptFilesToUnload

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle componentID stoppoint field-address field-port available-files
used by	element  tcip:cptFilesToUnload
source	<xs:complexType name="CptFilesToUnload">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="componentID" type="OB-MID" minOccurs="0"/>     <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="available-files">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="available-file" type="CPTUnloadFileHeader"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CptFilesToUnload/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:CptFilesToUnload/componentID

diagram
type	tcip:OB-MID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="componentID" type="OB-MID" minOccurs="0"/>

element tcip:CptFilesToUnload/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:CptFilesToUnload/field-address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CptFilesToUnload/field-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CptFilesToUnload/available-files

diagram
properties	isRef  0 content  complex
children	available-file
source	<xs:element name="available-files">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="available-file" type="CPTUnloadFileHeader"/>     </xs:sequence>   </xs:complexType> </xs:element>

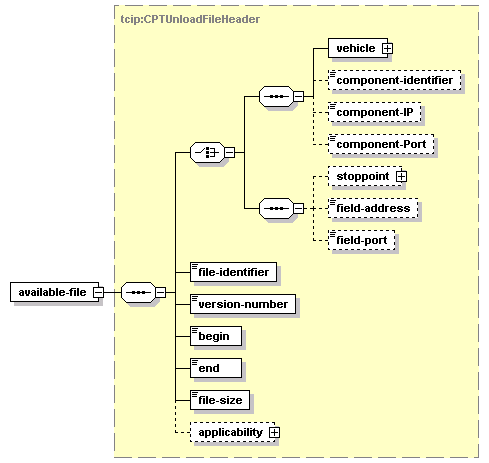

element tcip:CptFilesToUnload/available-files/available-file

diagram
type	tcip:CPTUnloadFileHeader
properties	isRef  0 content  complex
children	vehicle component-identifier component-IP component-Port stoppoint field-address field-port file-identifier version-number begin end file-size applicability
source	<xs:element name="available-file" type="CPTUnloadFileHeader"/>
