complexType tcip:CPTPTVehicleBase

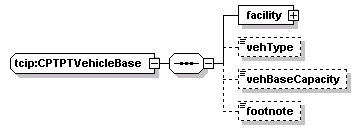

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	facility vehType vehBaseCapacity footnote
source	<xs:complexType name="CPTPTVehicleBase">   <xs:sequence>     <xs:element name="facility" type="CPTTransitFacilityIden"/>     <xs:element name="vehType" type="CPT-PTVehicleType" minOccurs="0"/>     <xs:element name="vehBaseCapacity" type="CPT-PTVehicleBaseCapacity" minOccurs="0"/>     <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTPTVehicleBase/facility

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="facility" type="CPTTransitFacilityIden"/>

element tcip:CPTPTVehicleBase/vehType

diagram
type	tcip:CPT-PTVehicleType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="vehType" type="CPT-PTVehicleType" minOccurs="0"/>

element tcip:CPTPTVehicleBase/vehBaseCapacity

diagram
type	tcip:CPT-PTVehicleBaseCapacity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="vehBaseCapacity" type="CPT-PTVehicleBaseCapacity" minOccurs="0"/>

element tcip:CPTPTVehicleBase/footnote

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>
