complexType atis:SettingEntries

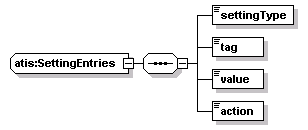

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	settingType tag value action
used by	elements  atis:TravelerSettingsReply/setting atis:TravelerSettingsRequest/setting atis:TravelerSettingsReply/supportedSetting
source	<xs:complexType name="SettingEntries">   <xs:sequence>     <xs:element name="settingType" type="SettingType"/>     <xs:element name="tag" type="Setting-Identity"/>     <xs:element name="value" type="Freetext"/>     <xs:element name="action" type="SetAction"/>   </xs:sequence> </xs:complexType>

element atis:SettingEntries/settingType

diagram
type	atis:SettingType
properties	isRef  0 content  simple
source	<xs:element name="settingType" type="SettingType"/>

element atis:SettingEntries/tag

diagram
type	atis:Setting-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="tag" type="Setting-Identity"/>

element atis:SettingEntries/value

diagram
type	atis:Freetext
properties	isRef  0 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="value" type="Freetext"/>

element atis:SettingEntries/action

diagram
type	atis:SetAction
properties	isRef  0 content  simple
source	<xs:element name="action" type="SetAction"/>
