complexType atis:TravelerSettingsRequest

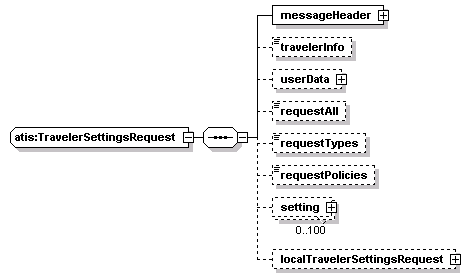

diagram
namespace http://www.ATIS-Draft-03-00-79
children messageHeader travelerInfo userData requestAll requestTypes requestPolicies setting localTravelerSettingsRequest
used by
element atis:travelerSettingsRequest
source <xs:complexType name="TravelerSettingsRequest">
  <xs:sequence>
    <xs:element name="messageHeader" type="MessageHeader"/>
    <xs:element name="travelerInfo" type="Traveler-Identity" minOccurs="0"/>
    <xs:element name="userData" type="ContactSetting" minOccurs="0"/>
    <xs:element name="requestAll" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- reply with all setting of record -->
    <xs:element name="requestTypes" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- reply stating all supported setting types -->
    <xs:element name="requestPolicies" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- reply with a URL to the use policies of this ISP -->
    <xs:element name="setting" type="SettingEntries" minOccurs="0" maxOccurs="100"/>
    <!-- the sequence of setting values to be changed -->
    <xs:element name="localTravelerSettingsRequest" type="local:TravelerSettingsRequest" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element atis:TravelerSettingsRequest/messageHeader

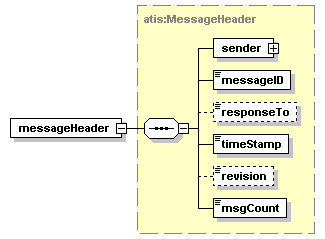

diagram
type atis:MessageHeader
properties
isRef 0
content complex
children sender messageID responseTo timeStamp revision msgCount
source <xs:element name="messageHeader" type="MessageHeader"/>

element atis:TravelerSettingsRequest/travelerInfo
diagram
type atis:Traveler-Identity
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 12
source <xs:element name="travelerInfo" type="Traveler-Identity" minOccurs="0"/>

element atis:TravelerSettingsRequest/userData

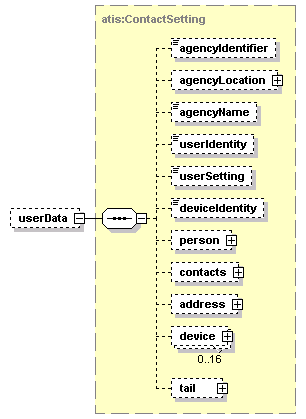

diagram
type atis:ContactSetting
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children agencyIdentifier agencyLocation agencyName userIdentity userSetting deviceIdentity person contacts address device tail
source <xs:element name="userData" type="ContactSetting" minOccurs="0"/>

element atis:TravelerSettingsRequest/requestAll
diagram
type restriction of xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="requestAll" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element atis:TravelerSettingsRequest/requestTypes
diagram
type restriction of xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="requestTypes" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element atis:TravelerSettingsRequest/requestPolicies
diagram
type restriction of xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="requestPolicies" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element atis:TravelerSettingsRequest/setting
diagram
type atis:SettingEntries
properties
isRef 0
minOcc 0
maxOcc 100
content complex
children settingType tag value action
source <xs:element name="setting" type="SettingEntries" minOccurs="0" maxOccurs="100"/>

element atis:TravelerSettingsRequest/localTravelerSettingsRequest
diagram
type TravelerSettingsRequest
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localTravelerSettingsRequest" type="local:TravelerSettingsRequest" minOccurs="0"/>
