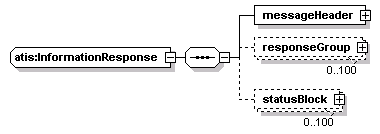

complexType atis:InformationResponse

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader responseGroup statusBlock
used by	elements  atis:informationResponse atis:ATISMessage/informationResponse
source	<xs:complexType name="InformationResponse">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="responseGroup" type="ResponseGroup" minOccurs="0" maxOccurs="100"/>     <xs:element name="statusBlock" type="StatusBlock" minOccurs="0" maxOccurs="100"/>   </xs:sequence> </xs:complexType>

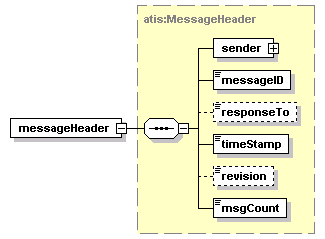

element atis:InformationResponse/messageHeader

diagram
type	atis:MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

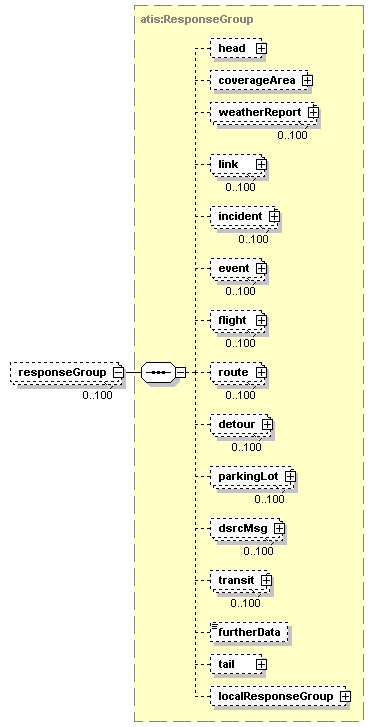

element atis:InformationResponse/responseGroup

diagram
type	atis:ResponseGroup
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head coverageArea weatherReport link incident event flight route detour parkingLot dsrcMsg transit furtherData tail localResponseGroup
source	<xs:element name="responseGroup" type="ResponseGroup" minOccurs="0" maxOccurs="100"/>

element atis:InformationResponse/statusBlock

diagram
type	atis:StatusBlock
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	level code text relatedData furtherInfo
source	<xs:element name="statusBlock" type="StatusBlock" minOccurs="0" maxOccurs="100"/>
