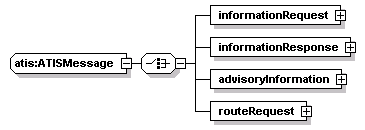

complexType atis:ATISMessage

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	informationRequest informationResponse advisoryInformation routeRequest
used by	element  atis:atisMessage
source	<xs:complexType name="ATISMessage">   <xs:choice>     <xs:element name="informationRequest" type="InformationRequest"/>     <xs:element name="informationResponse" type="InformationResponse"/>     <xs:element name="advisoryInformation" type="AdvisoryInformation"/>     <xs:element name="routeRequest" type="RouteRequest"/>     <!-- systemStatusRequest    SystemStatusRequest,          systemStatusResponse   SystemStatusReponse, -->   </xs:choice> </xs:complexType>

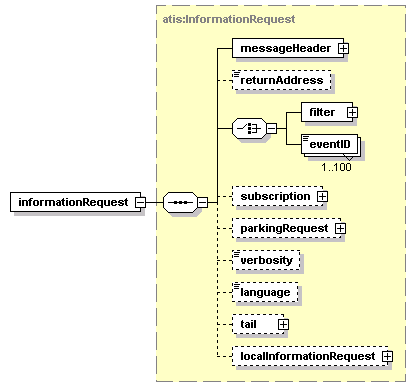

element atis:ATISMessage/informationRequest

diagram
type	atis:InformationRequest
properties	isRef  0 content  complex
children	messageHeader returnAddress filter eventID subscription parkingRequest verbosity language tail localInformationRequest
source	<xs:element name="informationRequest" type="InformationRequest"/>

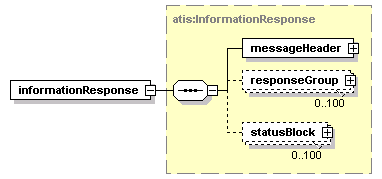

element atis:ATISMessage/informationResponse

diagram
type	atis:InformationResponse
properties	isRef  0 content  complex
children	messageHeader responseGroup statusBlock
source	<xs:element name="informationResponse" type="InformationResponse"/>

element atis:ATISMessage/advisoryInformation

diagram
type	atis:AdvisoryInformation
properties	isRef  0 content  complex
children	messageHeader responseGroup statusBlock
source	<xs:element name="advisoryInformation" type="AdvisoryInformation"/>

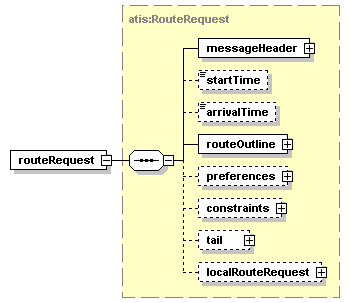

element atis:ATISMessage/routeRequest

diagram
type	atis:RouteRequest
properties	isRef  0 content  complex
children	messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source	<xs:element name="routeRequest" type="RouteRequest"/>
