complexType lrms:Transition

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	transitionName transitionId transitionOffset
used by	elements  lrms:Geometry/transition lrms:LocationReference/transition lrms:SpatialObject/transitionObject/transition
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="Transition">   <xs:sequence>     <xs:element name="transitionName" type="Text-name255" minOccurs="0"/>     <xs:element name="transitionId" type="IdType"/>     <xs:element name="transitionOffset" type="Distance" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:Transition/transitionName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="transitionName" type="Text-name255" minOccurs="0"/>

element lrms:Transition/transitionId

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="transitionId" type="IdType"/>

element lrms:Transition/transitionOffset

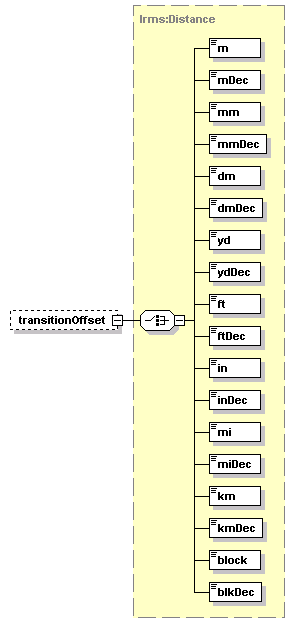

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="transitionOffset" type="Distance" minOccurs="0"/>
