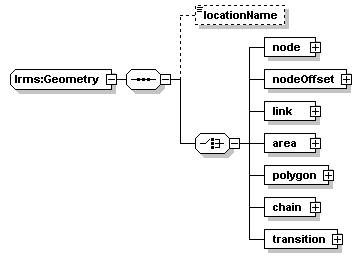

complexType lrms:Geometry

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName node nodeOffset link area polygon chain transition
used by	element  lrms:LocationReference/geometry
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="Geometry">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:choice>       <xs:element name="node" type="GeoLocation"/>       <xs:element name="nodeOffset">         <xs:complexType>           <xs:sequence>             <xs:element name="originNode" type="GeoLocation"/>             <xs:element name="offsetEast" type="Distance"/>             <xs:element name="offsetNorth" type="Distance"/>             <xs:element name="offsetHeight" type="Height" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="link" type="GeoLocationLink"/>       <xs:element name="area" type="IdType"/>       <xs:element name="polygon" type="Polygon"/>       <xs:element name="chain" type="Chain"/>       <xs:element name="transition" type="Transition"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:Geometry/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

element lrms:Geometry/node

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="node" type="GeoLocation"/>

element lrms:Geometry/nodeOffset

diagram
properties	isRef  0 content  complex
children	originNode offsetEast offsetNorth offsetHeight
source	<xs:element name="nodeOffset">   <xs:complexType>     <xs:sequence>       <xs:element name="originNode" type="GeoLocation"/>       <xs:element name="offsetEast" type="Distance"/>       <xs:element name="offsetNorth" type="Distance"/>       <xs:element name="offsetHeight" type="Height" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

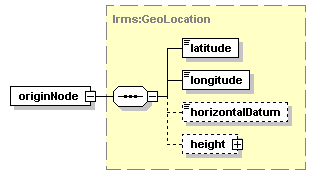

element lrms:Geometry/nodeOffset/originNode

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="originNode" type="GeoLocation"/>

element lrms:Geometry/nodeOffset/offsetEast

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetEast" type="Distance"/>

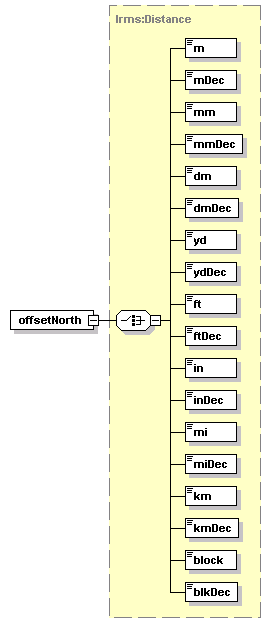

element lrms:Geometry/nodeOffset/offsetNorth

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetNorth" type="Distance"/>

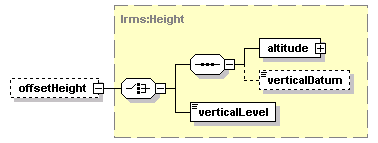

element lrms:Geometry/nodeOffset/offsetHeight

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="offsetHeight" type="Height" minOccurs="0"/>

element lrms:Geometry/link

diagram
type	lrms:GeoLocationLink
properties	isRef  0 content  complex
children	startPoint endPoint direction
source	<xs:element name="link" type="GeoLocationLink"/>

element lrms:Geometry/area

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="area" type="IdType"/>

element lrms:Geometry/polygon

diagram
type	lrms:Polygon
properties	isRef  0 content  complex
children	polygonName vertex
attributes	Name   Type   Use   Default   Fixed   annotation locationId lrms:String-index64
source	<xs:element name="polygon" type="Polygon"/>

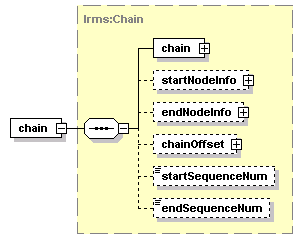

element lrms:Geometry/chain

diagram
type	lrms:Chain
properties	isRef  0 content  complex
children	chain startNodeInfo endNodeInfo chainOffset startSequenceNum endSequenceNum
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="chain" type="Chain"/>

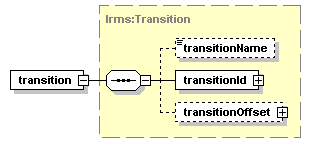

element lrms:Geometry/transition

diagram
type	lrms:Transition
properties	isRef  0 content  complex
children	transitionName transitionId transitionOffset
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="transition" type="Transition"/>
