complexType lrms:GeoLocationDelta
diagram
namespace http://www.LRMS-Adopted-02-00-00
children deltaHeight delta
used by
element lrms:GeoCoord/geoLocationDelta
source <xs:complexType name="GeoLocationDelta">
  <xs:sequence>
    <xs:element name="deltaHeight" type="Height" minOccurs="0"/>
    <xs:element name="delta">
      <xs:complexType>
        <xs:choice>
          <xs:element name="deltaCoords">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="deltaLatitude" type="Latitude"/>
                <xs:element name="deltaLongitude" type="Longitude"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="deltaDistance">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="offsetEast" type="Distance"/>
                <xs:element name="offsetNorth" type="Distance"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

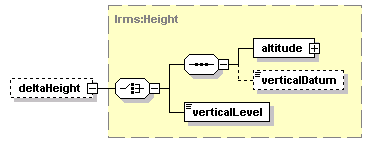

element lrms:GeoLocationDelta/deltaHeight
diagram
type lrms:Height
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children altitude verticalDatum verticalLevel
source <xs:element name="deltaHeight" type="Height" minOccurs="0"/>

element lrms:GeoLocationDelta/delta
diagram
properties
isRef 0
content complex
children deltaCoords deltaDistance
source <xs:element name="delta">
  <xs:complexType>
    <xs:choice>
      <xs:element name="deltaCoords">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="deltaLatitude" type="Latitude"/>
            <xs:element name="deltaLongitude" type="Longitude"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="deltaDistance">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="offsetEast" type="Distance"/>
            <xs:element name="offsetNorth" type="Distance"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element lrms:GeoLocationDelta/delta/deltaCoords
diagram
properties
isRef 0
content complex
children deltaLatitude deltaLongitude
source <xs:element name="deltaCoords">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="deltaLatitude" type="Latitude"/>
      <xs:element name="deltaLongitude" type="Longitude"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element lrms:GeoLocationDelta/delta/deltaCoords/deltaLatitude
diagram
type lrms:Latitude
properties
isRef 0
content simple
facets
minInclusive -90000000
maxInclusive +90000000
source <xs:element name="deltaLatitude" type="Latitude"/>

element lrms:GeoLocationDelta/delta/deltaCoords/deltaLongitude
diagram
type lrms:Longitude
properties
isRef 0
content simple
facets
minInclusive -180000000
maxInclusive +180000000
source <xs:element name="deltaLongitude" type="Longitude"/>

element lrms:GeoLocationDelta/delta/deltaDistance
diagram
properties
isRef 0
content complex
children offsetEast offsetNorth
source <xs:element name="deltaDistance">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="offsetEast" type="Distance"/>
      <xs:element name="offsetNorth" type="Distance"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element lrms:GeoLocationDelta/delta/deltaDistance/offsetEast
diagram
type lrms:Distance
properties
isRef 0
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="offsetEast" type="Distance"/>

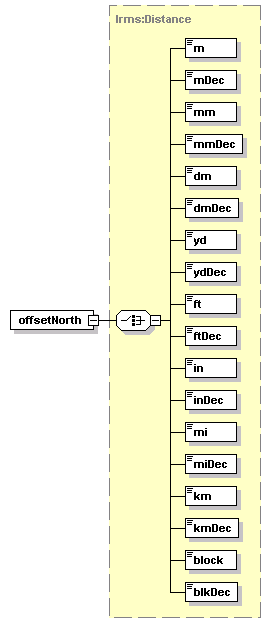

element lrms:GeoLocationDelta/delta/deltaDistance/offsetNorth
diagram
type lrms:Distance
properties
isRef 0
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="offsetNorth" type="Distance"/>
