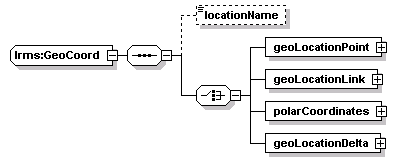

complexType lrms:GeoCoord

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName geoLocationPoint geoLocationLink polarCoordinates geoLocationDelta
used by	element  lrms:LocationReference/geoCoord
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="GeoCoord">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:choice>       <xs:element name="geoLocationPoint" type="GeoLocation"/>       <xs:element name="geoLocationLink" type="GeoLocationLink"/>       <xs:element name="polarCoordinates" type="PolarCoordinates"/>       <xs:element name="geoLocationDelta" type="GeoLocationDelta"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:GeoCoord/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

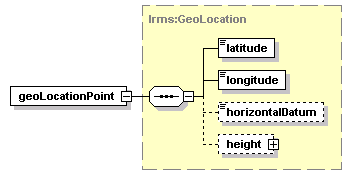

element lrms:GeoCoord/geoLocationPoint

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="geoLocationPoint" type="GeoLocation"/>

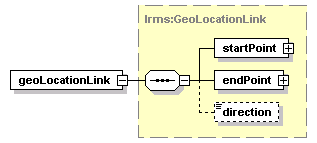

element lrms:GeoCoord/geoLocationLink

diagram
type	lrms:GeoLocationLink
properties	isRef  0 content  complex
children	startPoint endPoint direction
source	<xs:element name="geoLocationLink" type="GeoLocationLink"/>

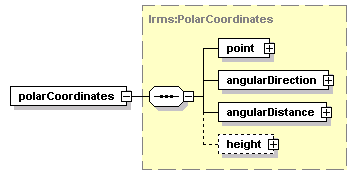

element lrms:GeoCoord/polarCoordinates

diagram
type	lrms:PolarCoordinates
properties	isRef  0 content  complex
children	point angularDirection angularDistance height
source	<xs:element name="polarCoordinates" type="PolarCoordinates"/>

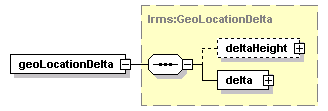

element lrms:GeoCoord/geoLocationDelta

diagram
type	lrms:GeoLocationDelta
properties	isRef  0 content  complex
children	deltaHeight delta
source	<xs:element name="geoLocationDelta" type="GeoLocationDelta"/>
