| elements | tcip:SpMapImage/range tcip:SpMapImageSub/range |
<xs:sequence>
<xs:element name="center" type="SPPoint"/>
<xs:element name="radius" type="lrms:Distance"/>
</xs:sequence>
</xs:complexType>
| diagram | |
||
| namespace | http://www.TCIP-Adopted-03-00-01 | ||
| children | center radius | ||
| used by |
|
||
| source | <xs:complexType name="SPBoundaryRange"> <xs:sequence> <xs:element name="center" type="SPPoint"/> <xs:element name="radius" type="lrms:Distance"/> </xs:sequence> </xs:complexType> |

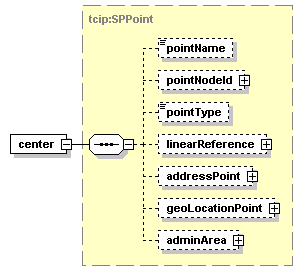

| diagram |  |
||||
| type | tcip:SPPoint | ||||
| properties |
|
||||
| children | pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea | ||||
| source | <xs:element name="center" type="SPPoint"/> |

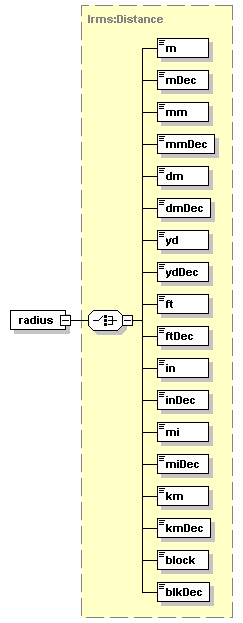

| diagram |  |
||||
| type | lrms:Distance | ||||
| properties |
|
||||
| children | m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec | ||||
| source | <xs:element name="radius" type="lrms:Distance"/> |
