complexType tcip:SCHActualRunTime

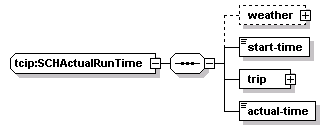

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	weather start-time trip actual-time
used by	element  tcip:SCHActualRunningTimeData/actuals/actual
source	<xs:complexType name="SCHActualRunTime">   <xs:sequence>     <xs:element name="weather" type="atis:WeatherInformation" minOccurs="0"/>     <xs:element name="start-time" type="CPT-DateTime"/>     <!-- when the measurement started -->     <xs:element name="trip" type="SCHTripIden"/>     <xs:element name="actual-time" type="CPT-Duration"/>   </xs:sequence> </xs:complexType>

element tcip:SCHActualRunTime/weather

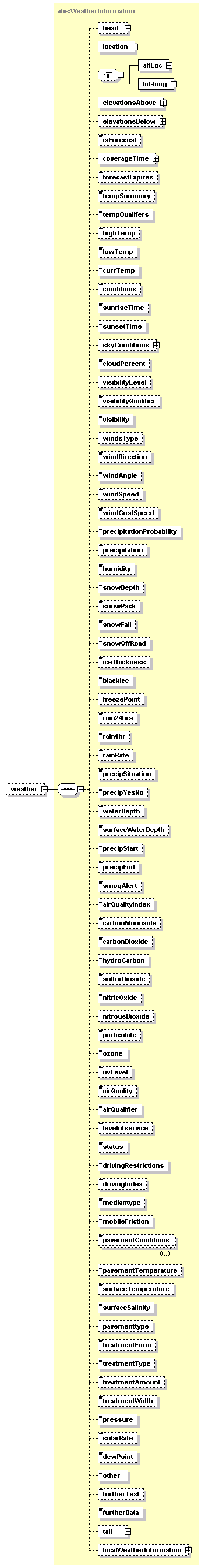

diagram
type	atis:WeatherInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	head location altLoc lat-long elevationsAbove elevationsBelow isForecast coverageTime forecastExpires tempSummary tempQualifers highTemp lowTemp currTemp conditions sunriseTime sunsetTime skyConditions cloudPercent visibilityLevel visibilityQualifier visibility windsType windDirection windAngle windSpeed windGustSpeed precipitationProbability precipitation humidity snowDepth snowPack snowFall snowOffRoad iceThickness blackIce freezePoint rain24hrs rain1hr rainRate precipSituation precipYesNo waterDepth surfaceWaterDepth precipStart precipEnd smogAlert airQualityIndex carbonMonoxide carbonDioxide hydroCarbon sulfurDioxide nitricOxide nitrousDioxide particulate ozone uvLevel airQuality airQualifier levelofservice status drivingRestrictions drivingIndex mediantype mobileFriction pavementConditions pavementTemperature surfaceTemperature surfaceSalinity pavementtype treatmentForm treatmentType treatmentAmount treatmentWidth pressure solarRate dewPoint other furtherText furtherData tail localWeatherInformation
source	<xs:element name="weather" type="atis:WeatherInformation" minOccurs="0"/>

element tcip:SCHActualRunTime/start-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="start-time" type="CPT-DateTime"/>

element tcip:SCHActualRunTime/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden"/>

element tcip:SCHActualRunTime/actual-time

diagram
type	tcip:CPT-Duration
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="actual-time" type="CPT-Duration"/>
